Product Description:
Mingxin new generation electronic waste recycling machinery is our company use reasonable physical priciples , first dismantling TV shell, tubes, printed circuit boards, ect, and then uses nickel chrome belt heating method can efficiently separate the glass panel and funnel, collect internal phosphor to prevent environmental pollution efficiently. Mainly used for waste TV with size from 14 "to 33", and waste computer monitors. The capacity reaches 60 pieces per hour.
Features of electronic waste recycling machinery :
- Separates CRT into funnel and panel
- Works on CRT monitor size from 14~33 inch
- Low power consumption, capacity up to 40-60 units per hour
- Small in volume, low malfunction rate / maintenance cost
- Easy to operate with only one or two operators
Technical Parameters:
Dimension (L*W*H) (mm) |
1600*1210*1800 |
Power |
5.5kw |
Voltage |
380v 50hz or customize |
Air pressure |
0.6-0.8Mpa |
Capacity |
40-60set/h |
Applicable |
14-33 inch |
Operator |
1-2 workers |

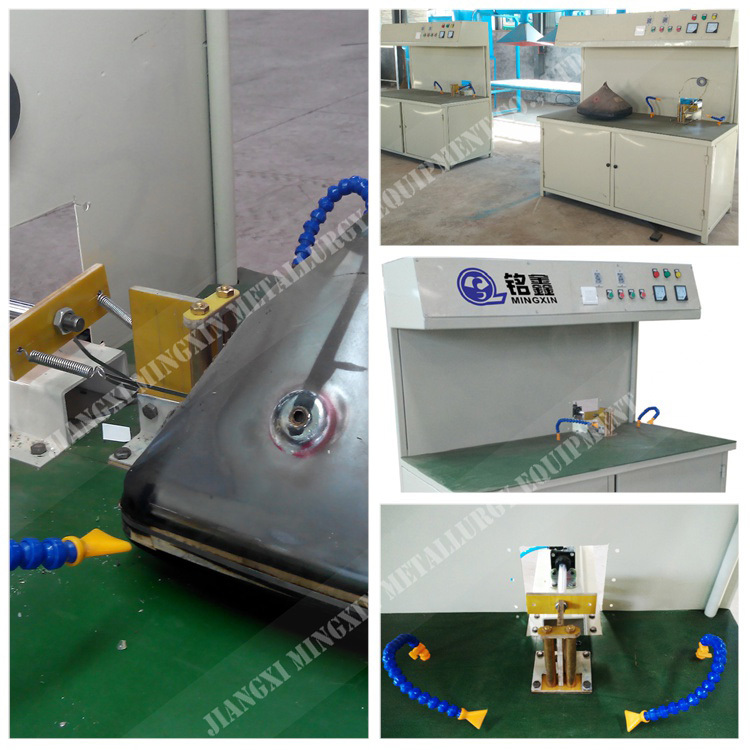

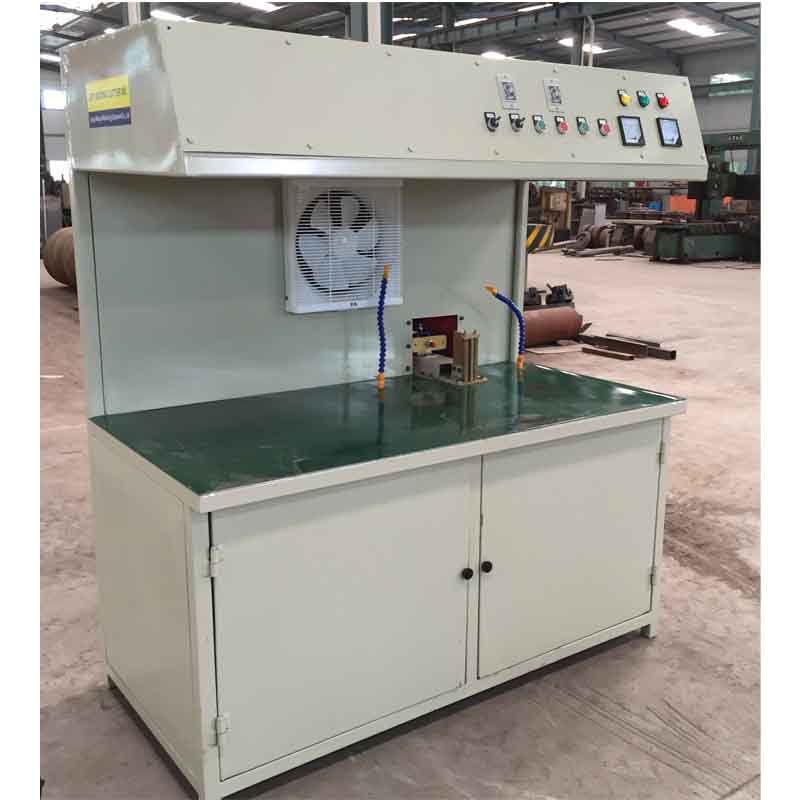

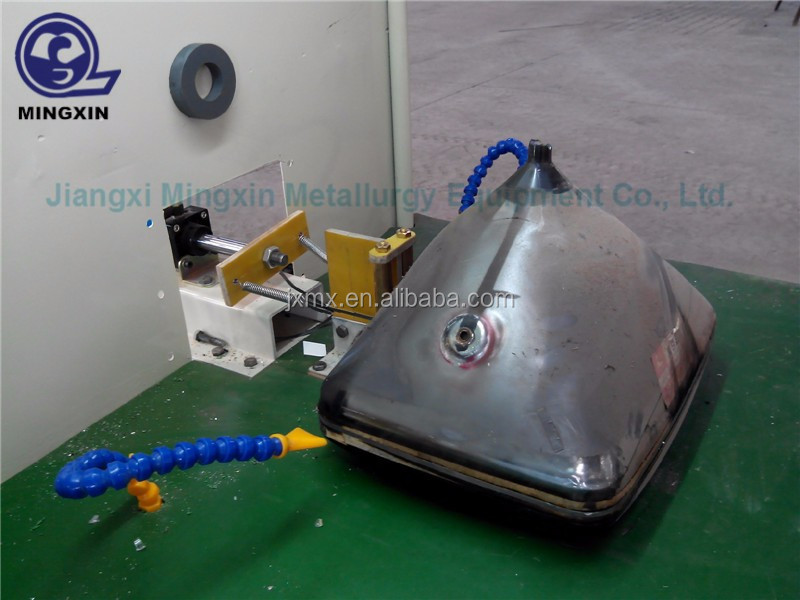

Product Pictures:
Click Here Demonstrate the complete CRT cutting process.
