DESCRIPTION

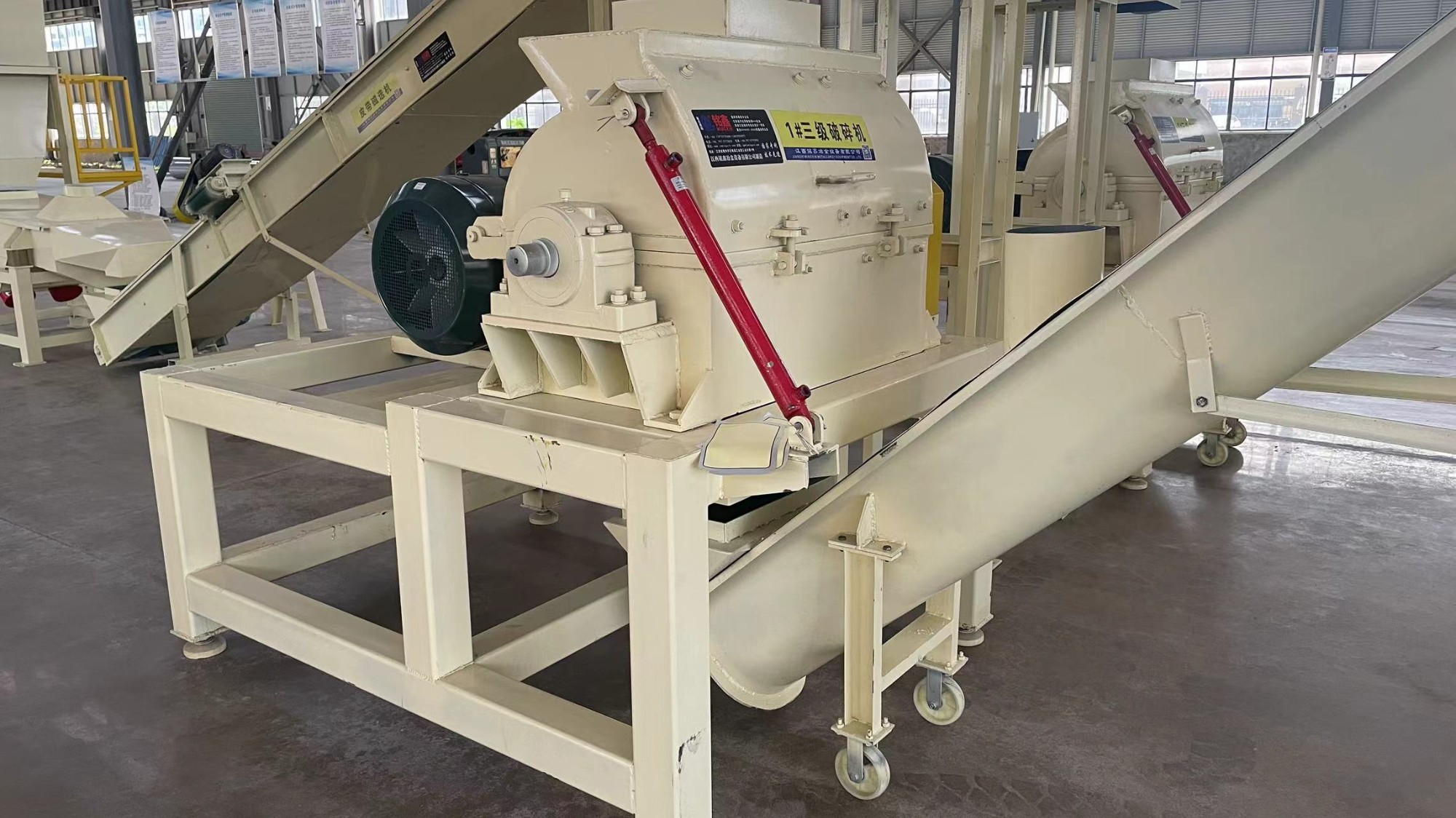

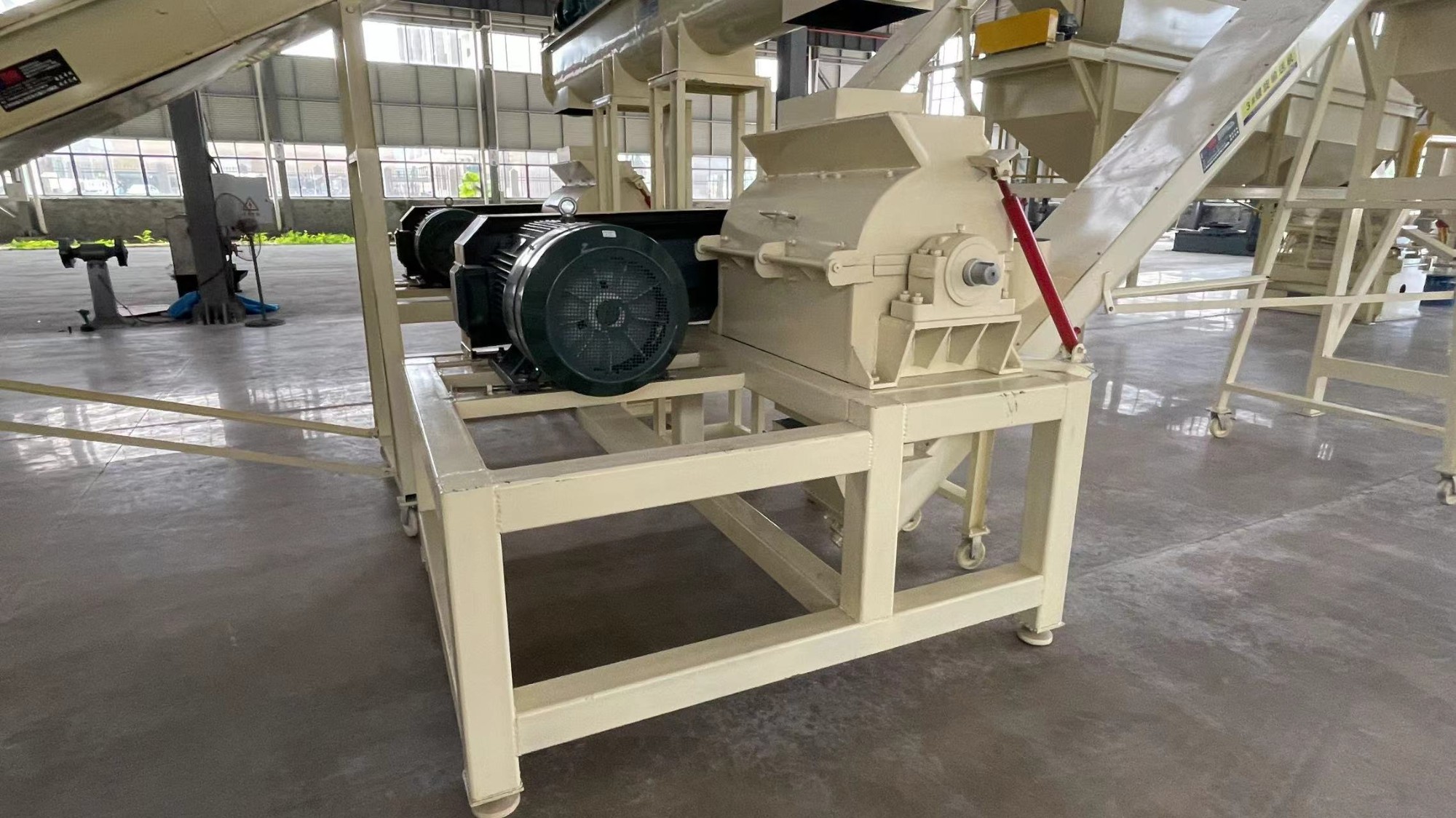

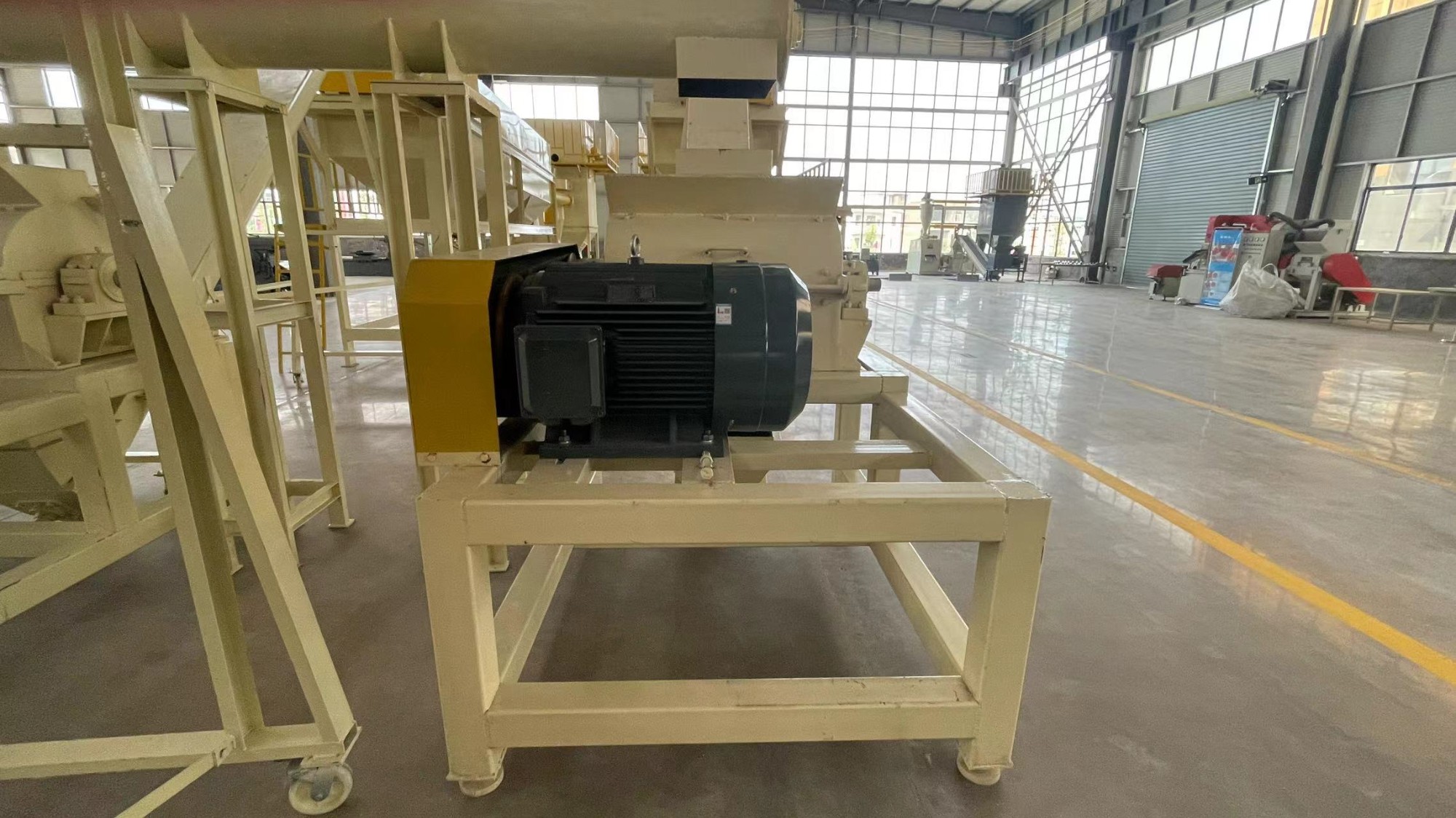

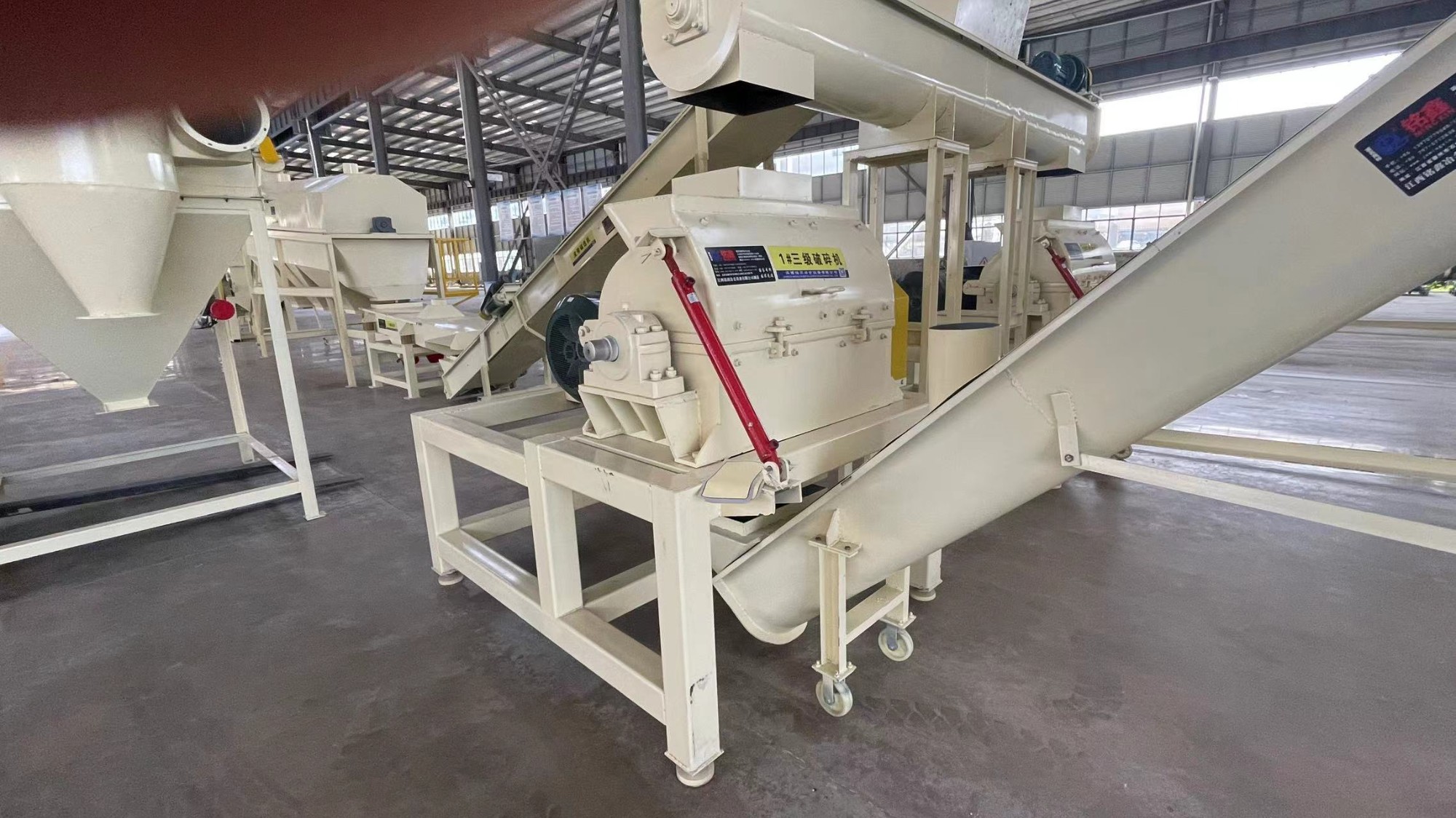

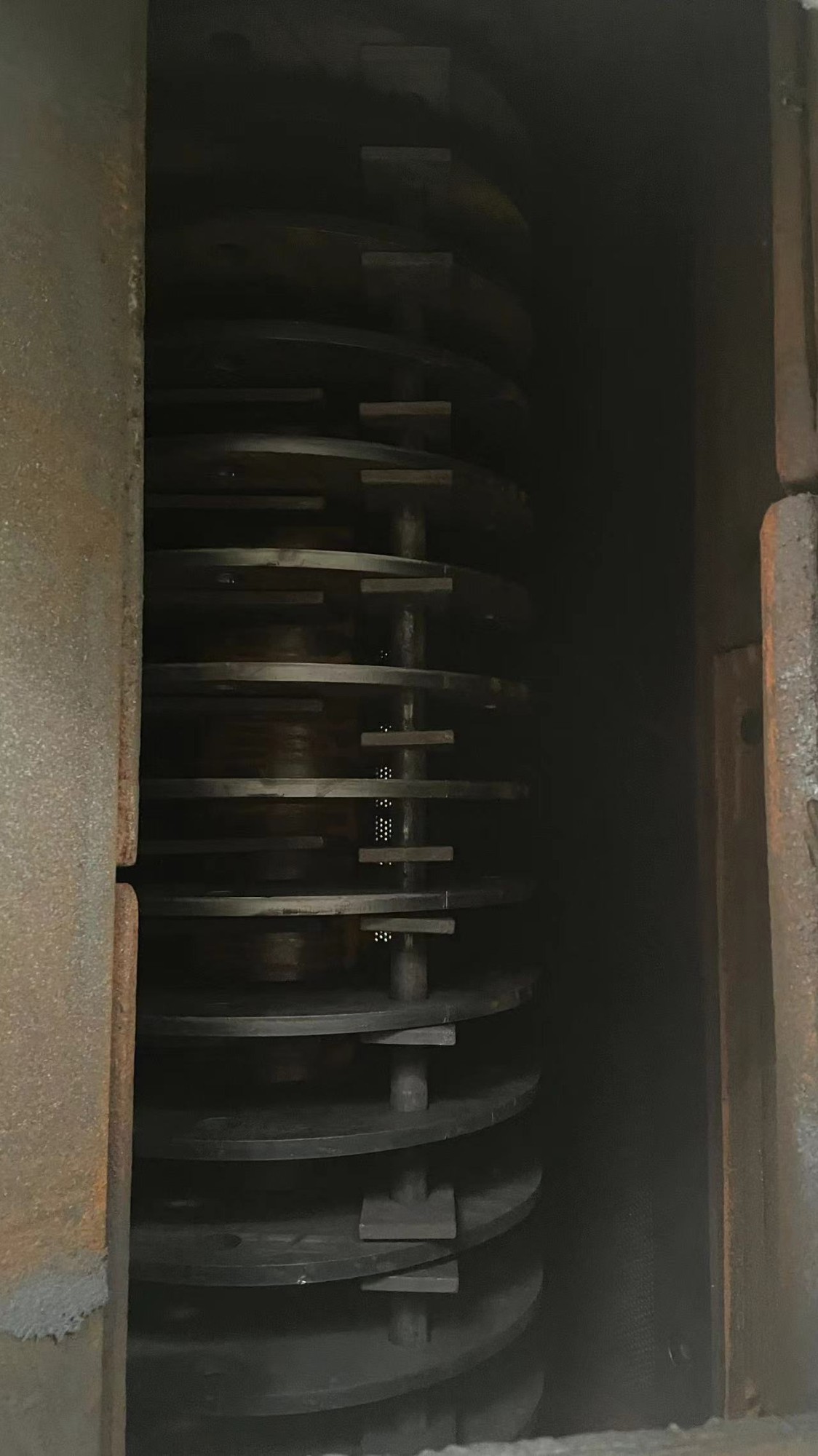

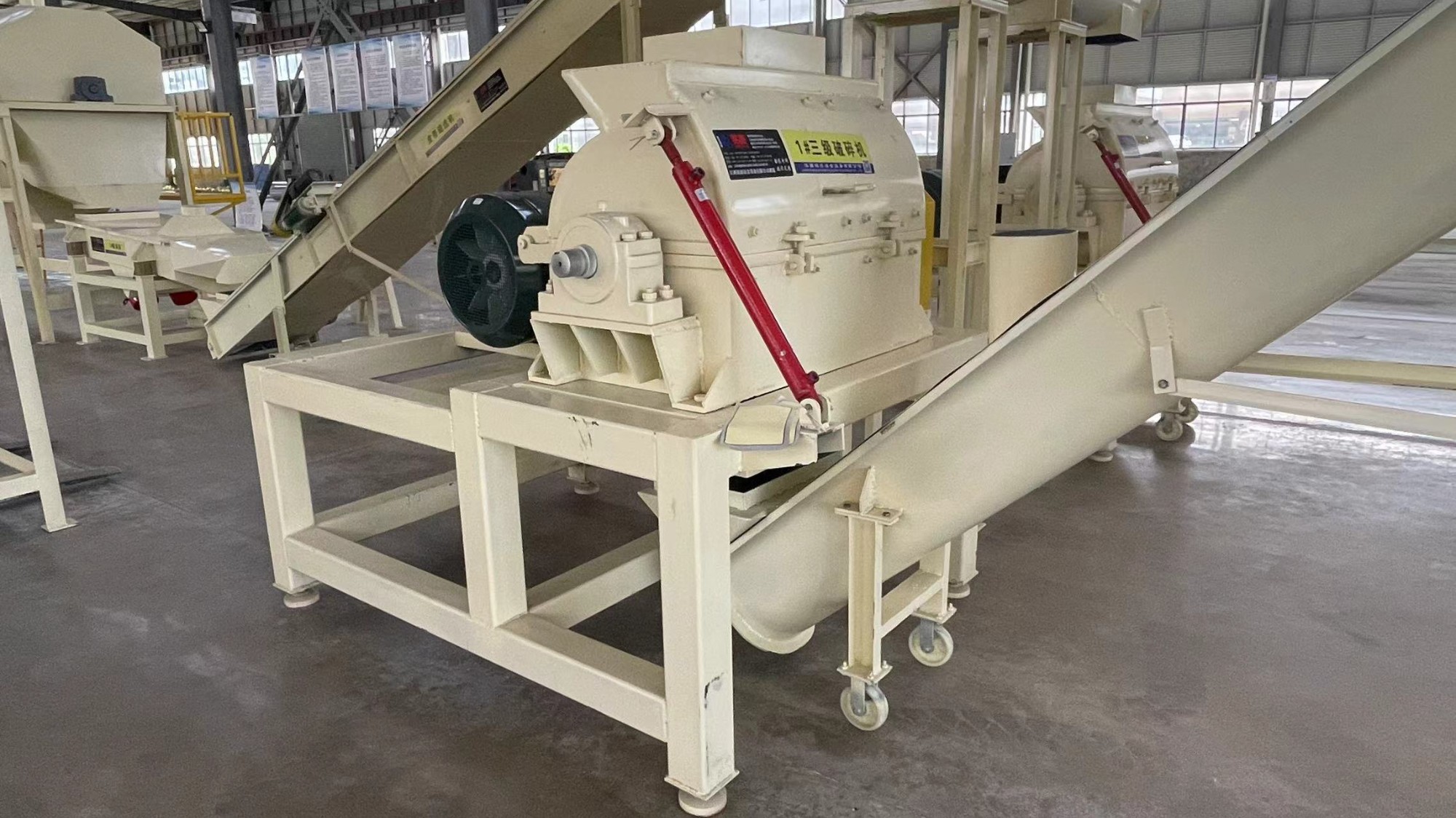

The robust, industrial hammer mills type are used for crushing materials ranging from dry to damp, soft to tough, chewy to brittle. Depending on product characteristics and the desired milling result, both types may be equipped with a variety of sieve and bar grate screen inserts. Comfortable acces to hammers, shaft and sieve insert for revision and maintenance is provided by the foldaway fronthousing. The sieve insert in easily changed from the side. The MINGXIN hammer mills are designed for both standalone operation (batch) and direct integration into a production line.
Both types are available in mild and stainless steel.
APPLICATION
Hammer mills are ideal for breaking down oversize granular materials, as well as preparing material for use as feedstock. Common applications include:
- Crushing as preparation for fine milling
-
Crushing of soft to hard, tough or damp materials
-
Sample preparation for research institutions
These hammer mills are ideal for a variety of products, including:
- Agricultural products
- Biomass materials
- Ceramics
- Cereals
- Chemicals
- Food processing ingredients
- Hemp
- Minerals
- Pigments
- Pulp and paper
- Wood
SPECIFICATION
Model
MX-200
MX-320
MX-460
MX-580
MX-1000
Power(kw)
7.5
22
37
45
90
Speed of axis（rpm）
1440
2900-3100
2900-3100
2450-2600
2600-2900
Dimater of rotor（mm）
73
73
73
88
88
Width of chamber（mm）
200
320
460
580
1000
Dimension(mm)
450×320×880
850×810×900
2000×1100×1100
2000×1150×1100
2600×1290×1810
Weight (kg)
500
850
900
970
2650
