Description

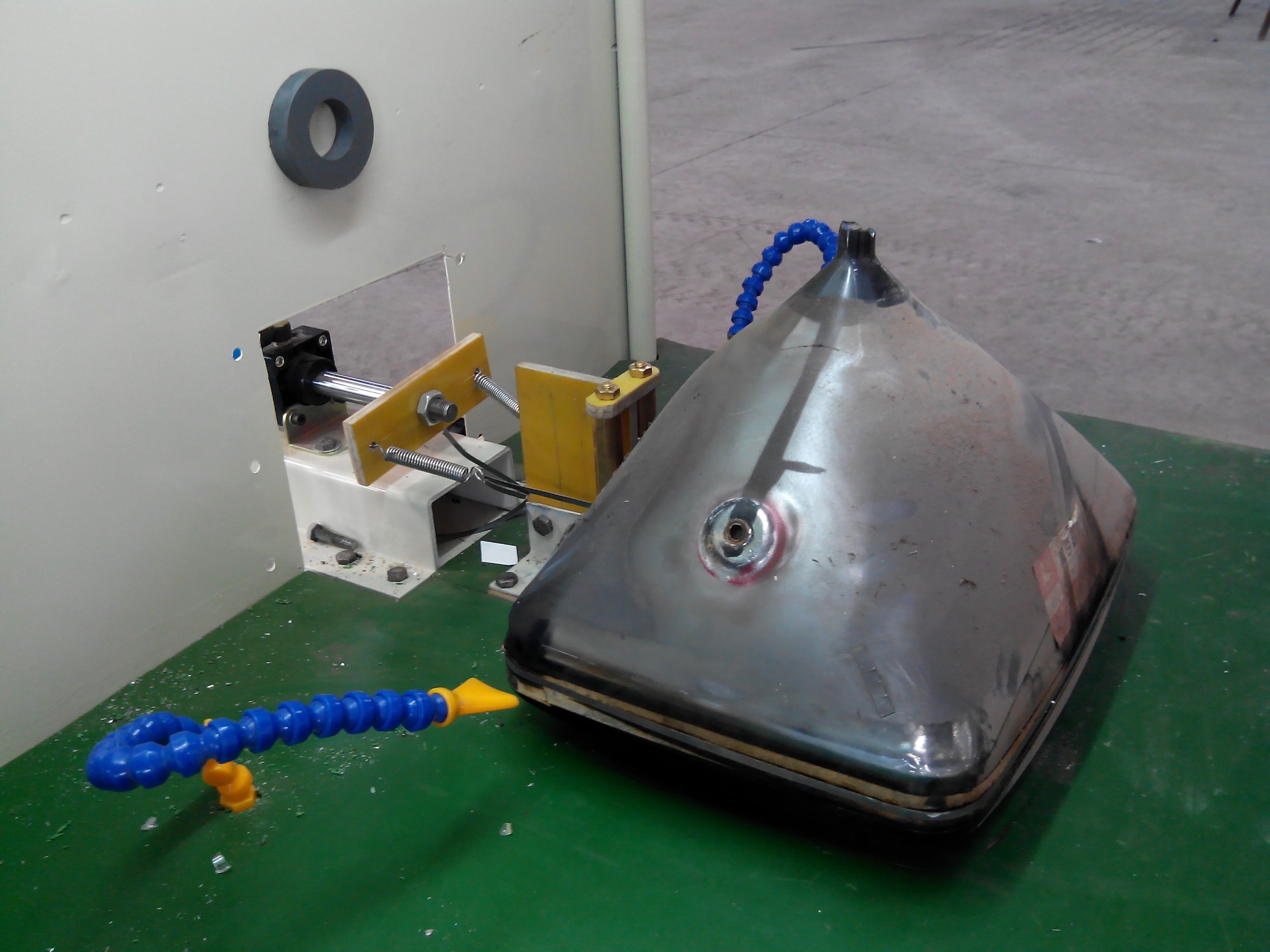

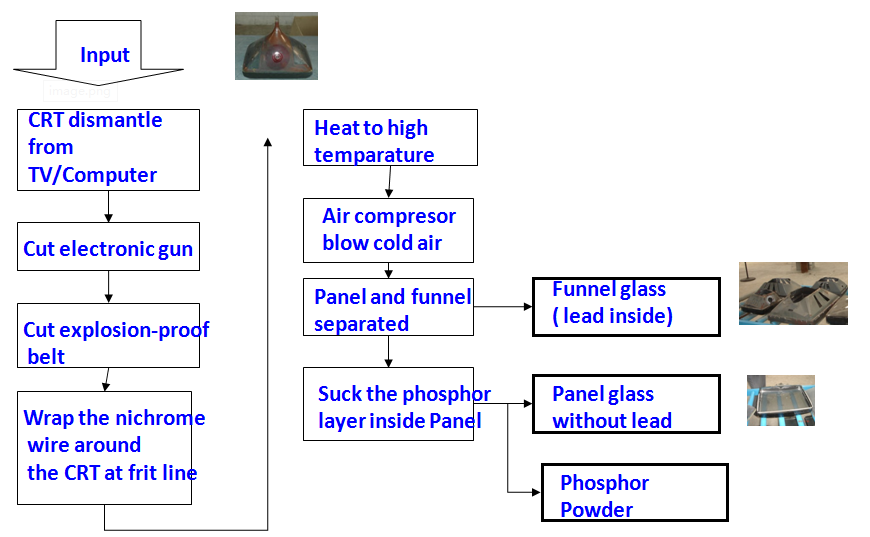

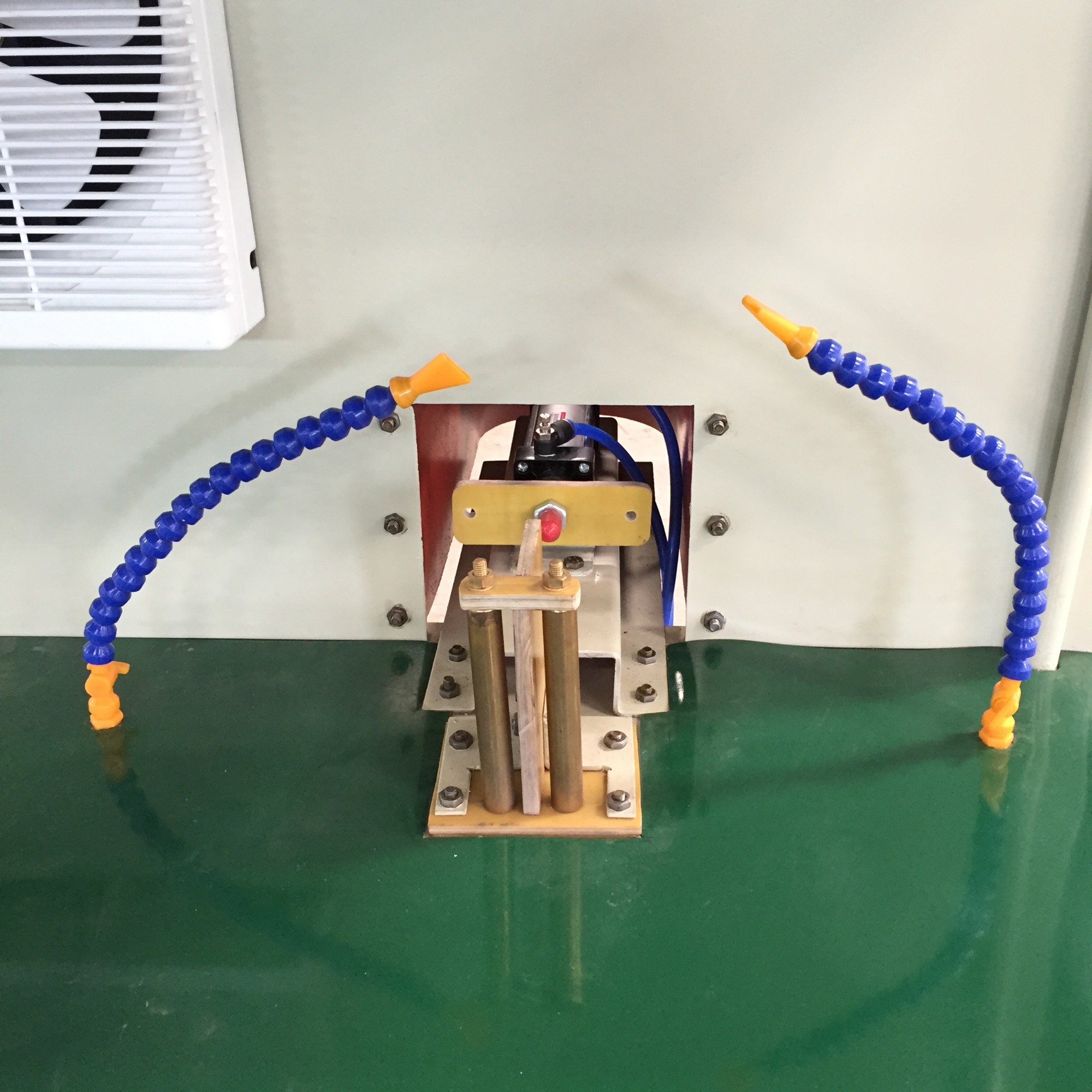

Using steel wire heating method can efficiently separate the panel glass and cone glass, collect internal phosphor
to prevent environmental pollution efficiently. Mainly used for waste TV with size from 10"to 40"(Changes the length
of heater band can cut a bigger size of TV), and waste computer monitors.
Specifications
Model

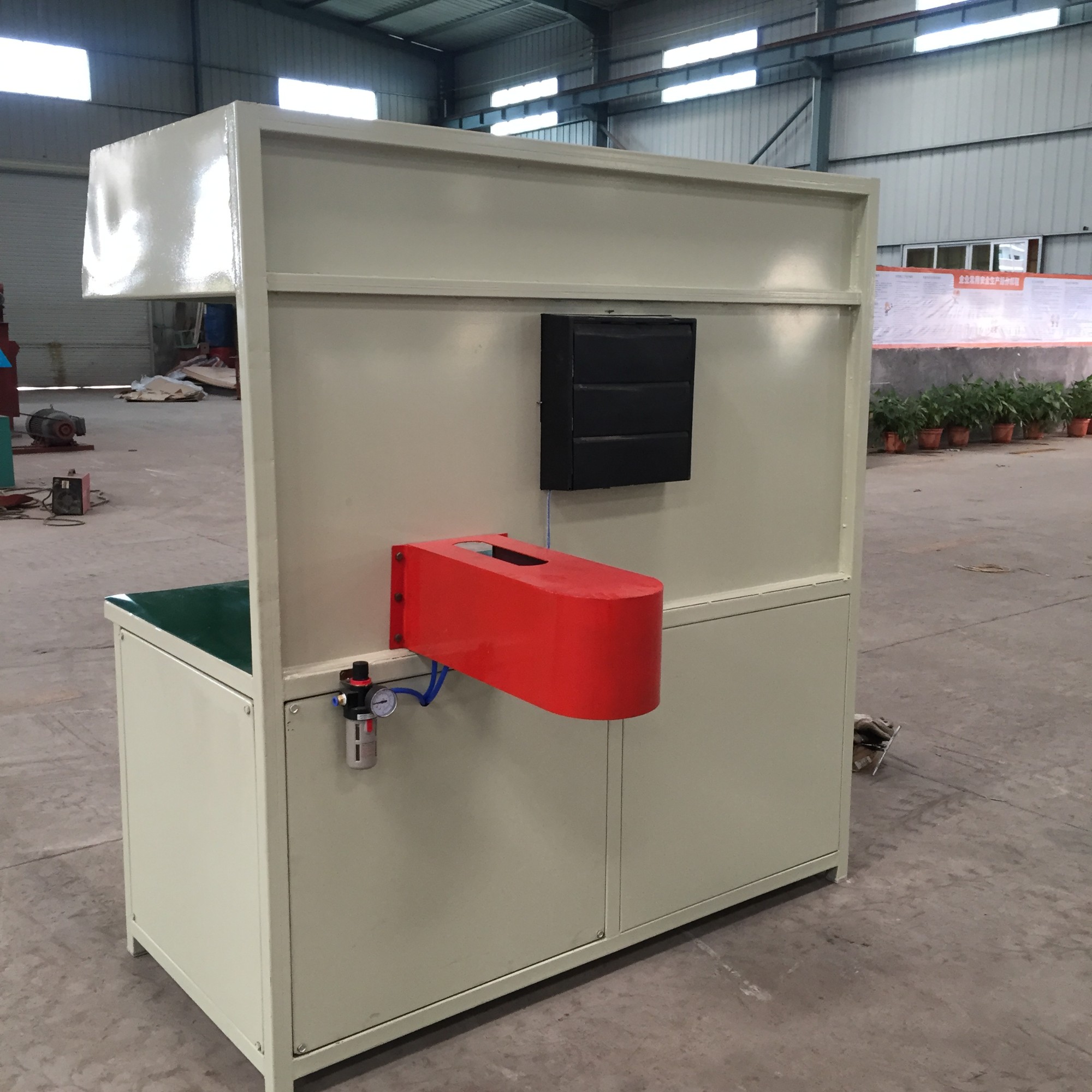

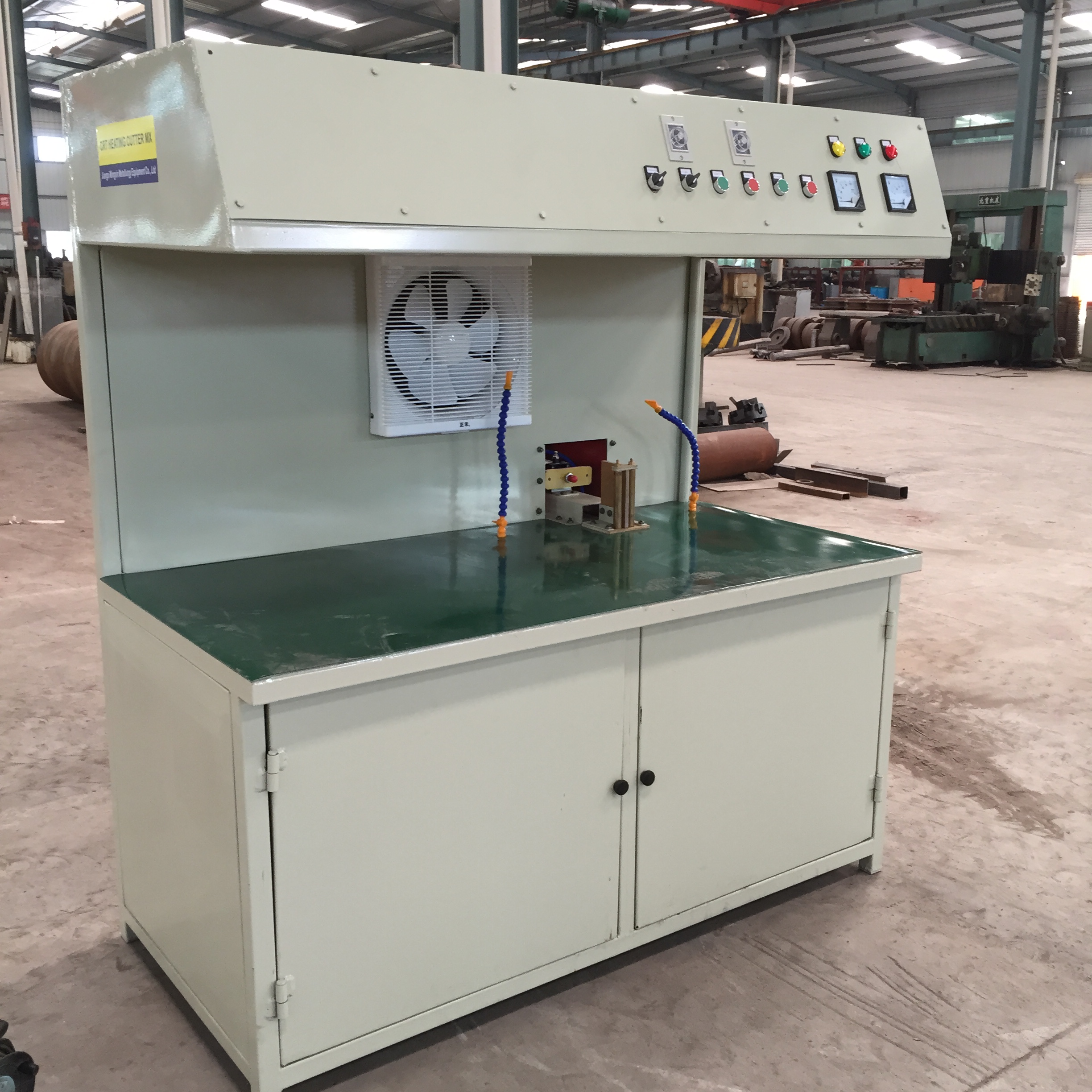

MX-CRT-one station version
MX-CRT-two station version
Equipment

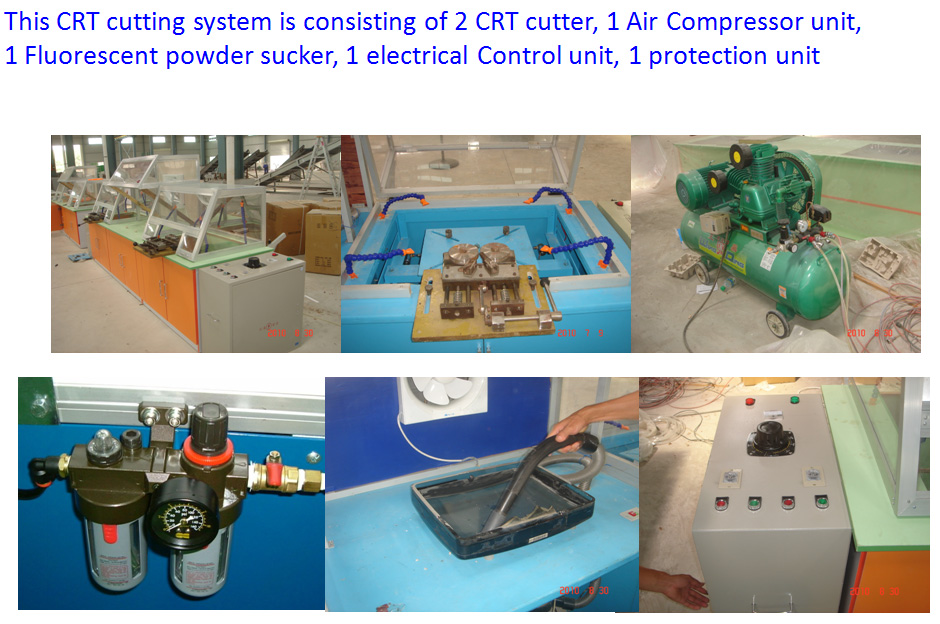

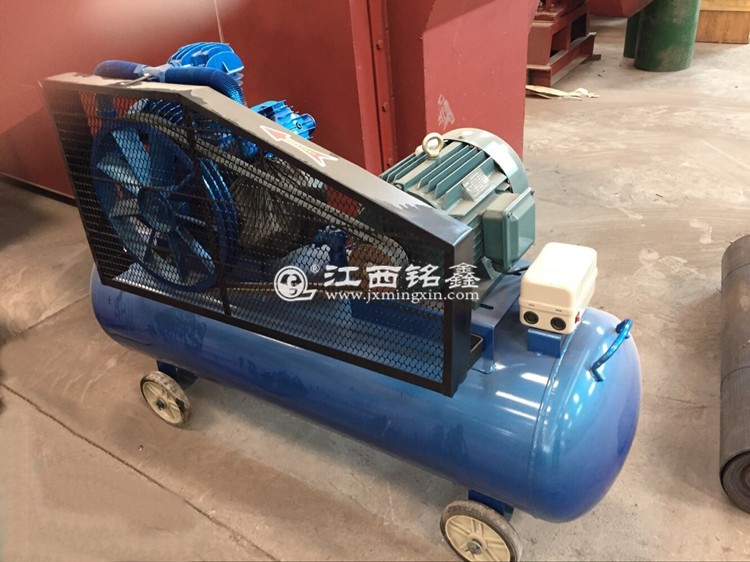

1xCRT cutting machine, 1xAir pump, 1x Fluorescent powder collector.
2xCRT cutting machine, 1xAir pump, 1xFluorescent powder collector.
Dimension
1600×750×1750mm
4080x800x1530mm
Treatment TV size
Treatment size: 10”-40”(Changes the length of heater band can cut a bigger size of TV),weight: 7-50kg;dimension: 346x365x365mm, max size: 587x660x868mm
Capacity
40-60sets/hour
80-100sets/hour

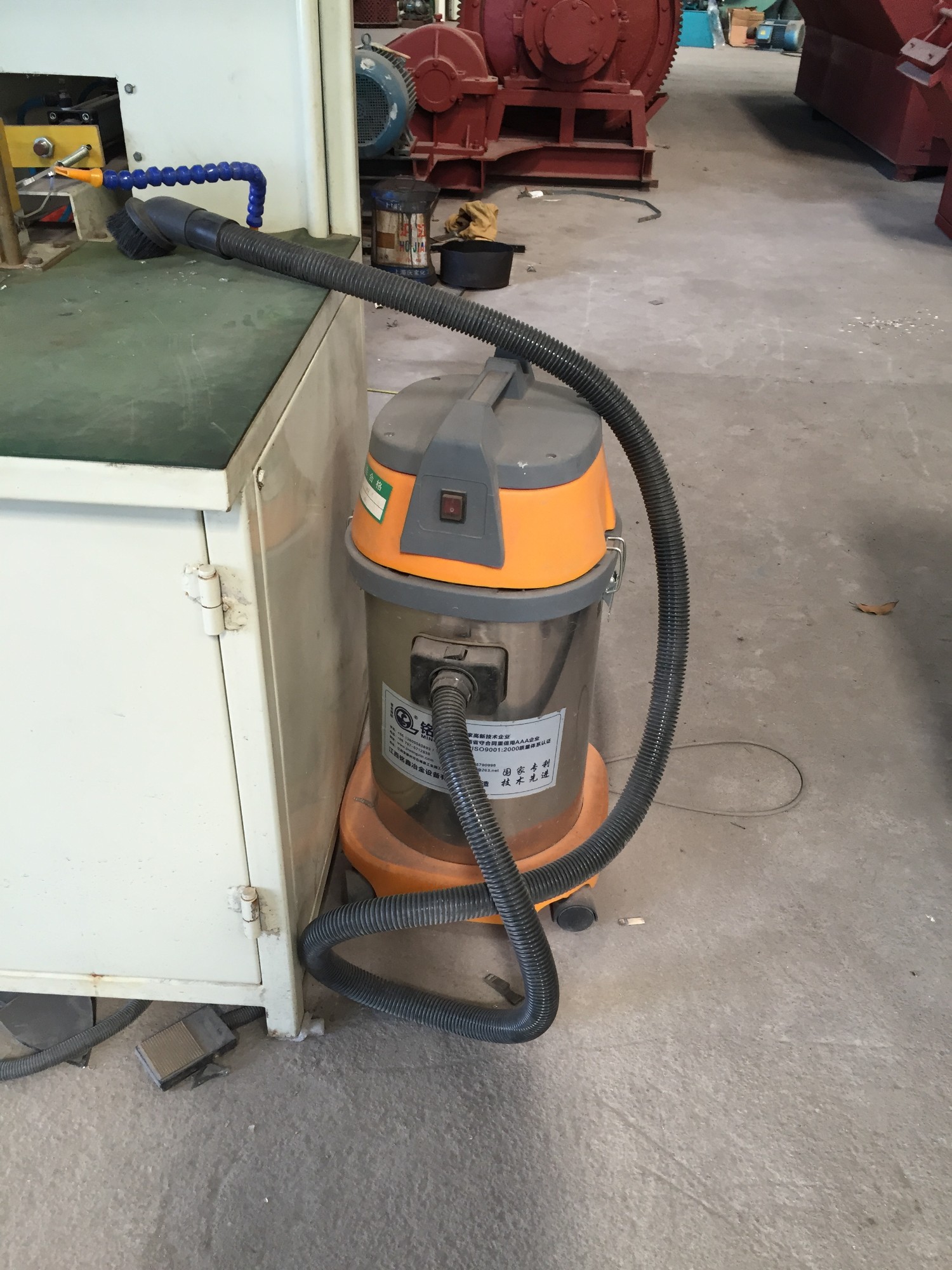

Fluorescent powder collector
60L-1.8KW->17KPA
Total power
18.3kw
24.5KW

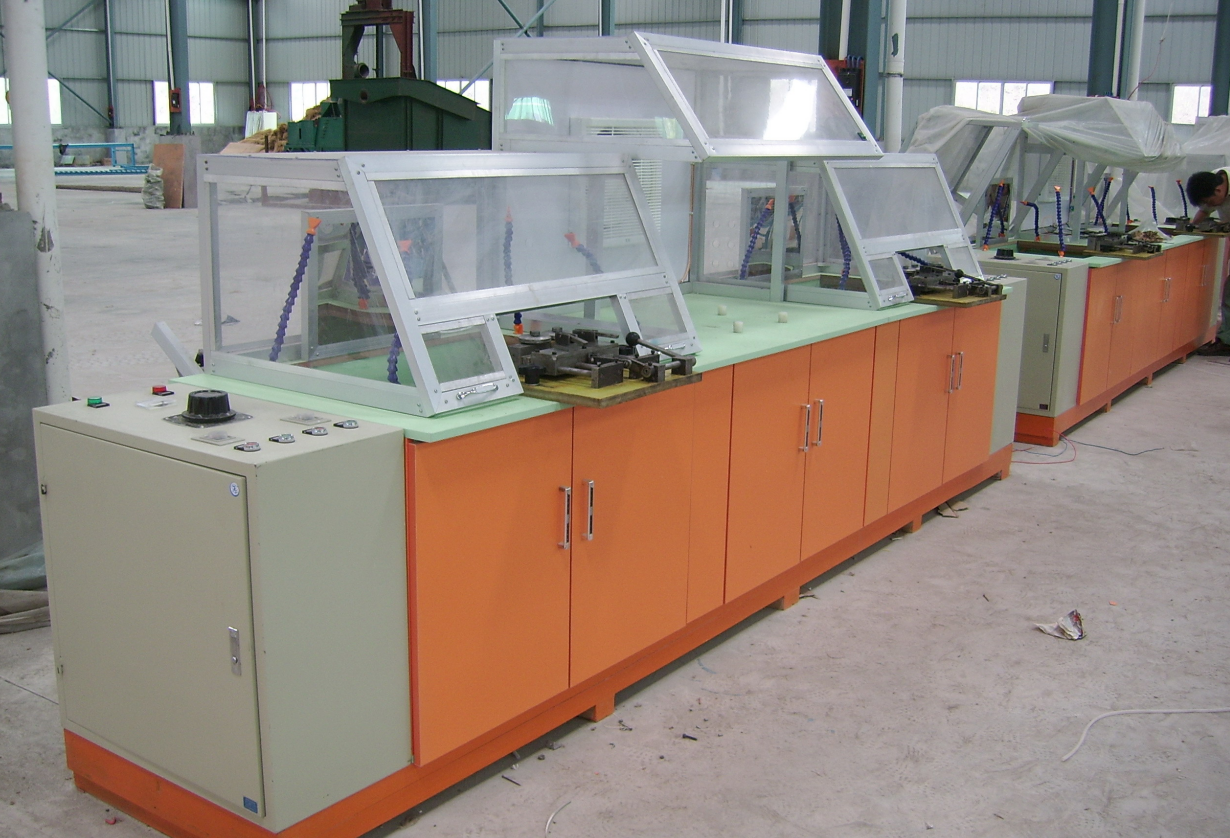

More Images & Package
