WORKING PRINCIPLE
Electronic components have to be dismantled from PCB assembly as the most important step in their recycling chain, to help conservation of resources, reuse of components and elimination of hazardous materials from the environment.

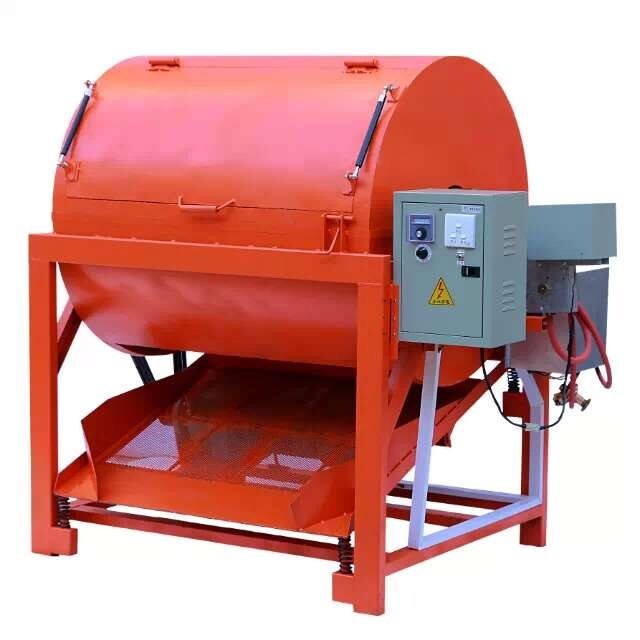

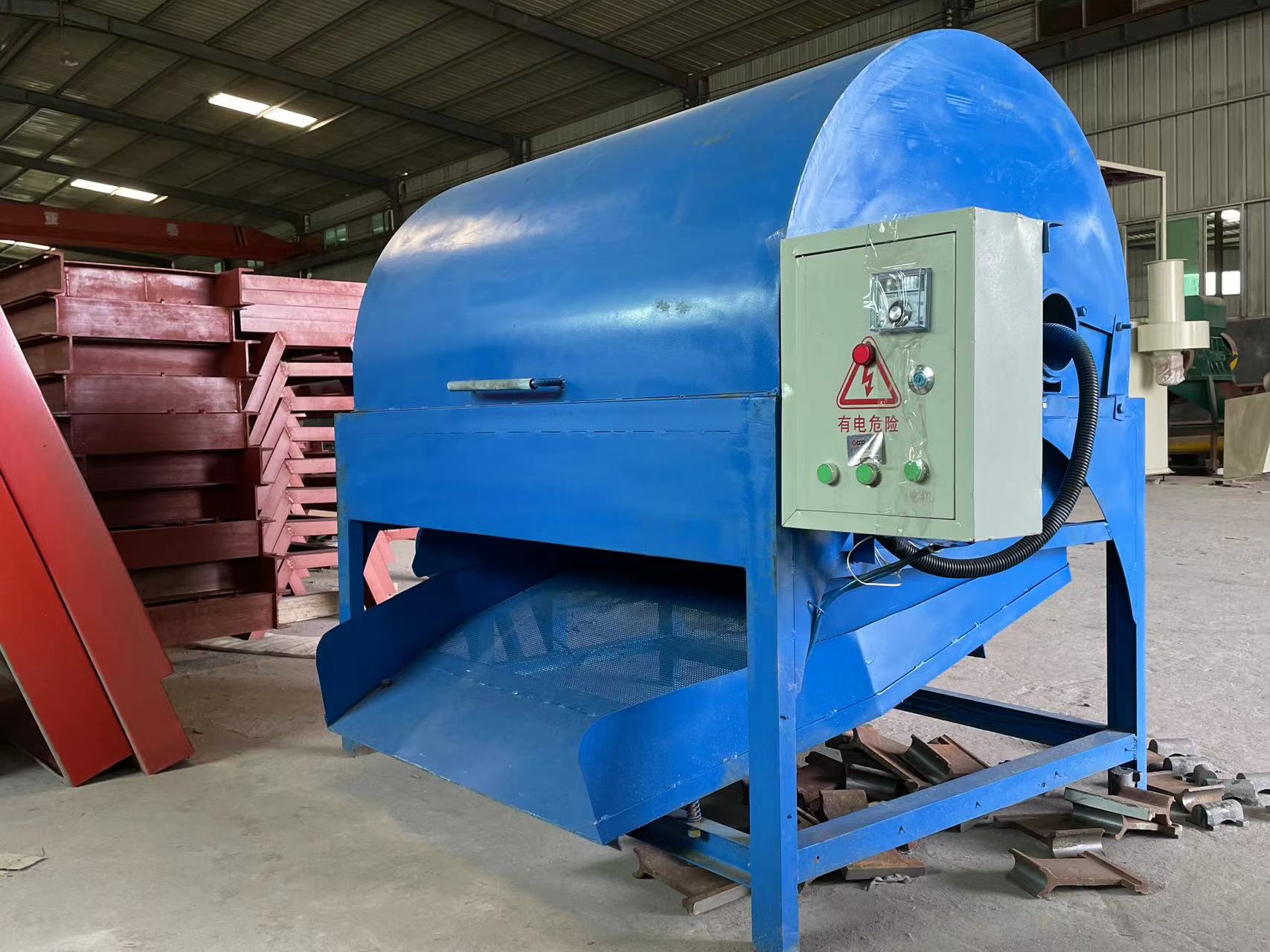

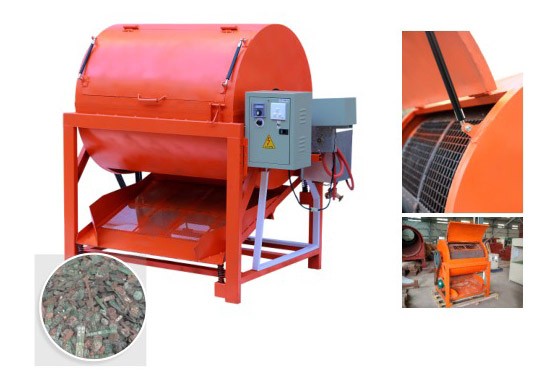

PCB dismantling machine can be powered by nature gas or electricity. The roller part can be heated up to 400℃. The tin on circuit board will be melted, and the electronic components(card slots, capacitors, chips, etc.) will be dropped from the circuit board with
the running of the main engine. The equipment can save a lot of manul work, one people can operate it easily. You can also use a vibrating screen to further sort the components.
TECHNICAL SPECIFICATION
Model
Temperature(℃)
Speed(r/min)
Power(kw)
Dimension(mm)
Weight(kg)
MXC-30
25-300
5-60
3.75
1680*980*1420
585
MXC-40
25-300
5-60
4.75
1880*1080*1580
870
IMAGES
