Product Decriptions
Mingxin Electric Heat CRT Cutting system is used to sepeate the glass at panel and glass at rear part called funnel, suck and collect the fluorescent powder. All steps are eco-friendly, no pollution produced.Then Collect Fluorescent powder to avoid environment pollution.
Working Principle
1. First Encircle the CRT monitor edge by Ni-Chrome Belt
2. Connect Electric heat tube and Ni-chrome belt. Then turn on electric power.
3 .To cut the edge between panel and funnel by high temperature Ni-Chrome Belt.
4. Finish cutting And use Cleaner to collect Fluorescent Powder
Technical Parameters
MX-CRT-1
MX-CRT-2
Equipment

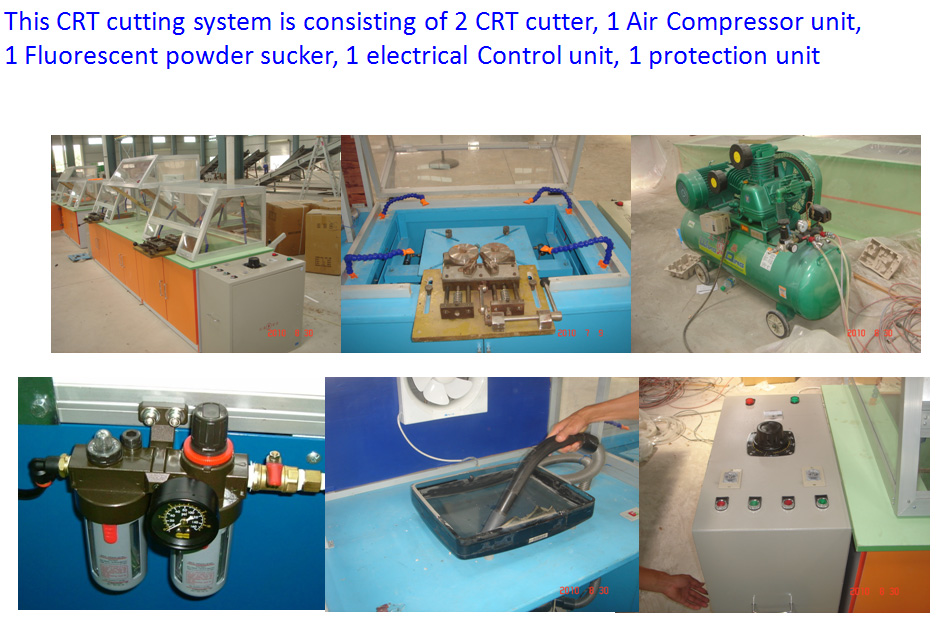

1xCRT cutting machine, 1xAir pump, 1x Fluorescent powder collector.
2xCRT cutting machine, 1xAir pump, 1xFluorescent powder collector.
Dimension
1600×750×1750mm
4080x800x1530mm
Treatment TV size
Treatment size: 10”-40”(Changes the length of heater band can cut a bigger size of TV),weight: 7-50kg;dimension: 346x365x365mm, max size: 587x660x868mm
Capacity
40-60 sets/hour
80-100 sets/hour
60L-1.8KW->17KPA
Total power
18.3kw
24.5KW
Package
Plywood Case
Plywood Case
Package Case Size
1800X1500X1920cm. 445KG
4100 x1200x1700mm. 628KG

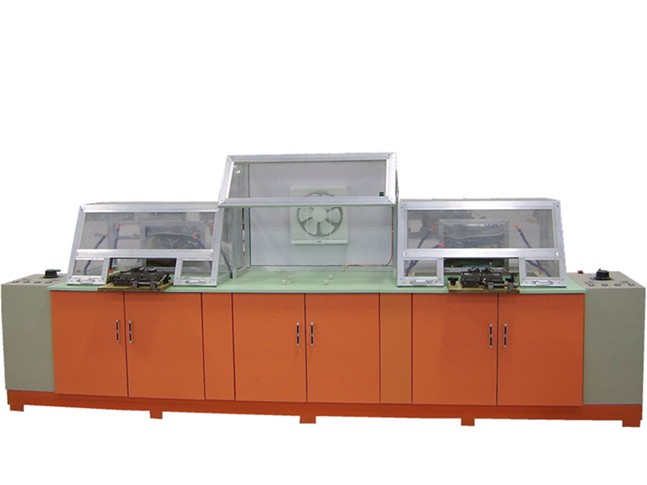

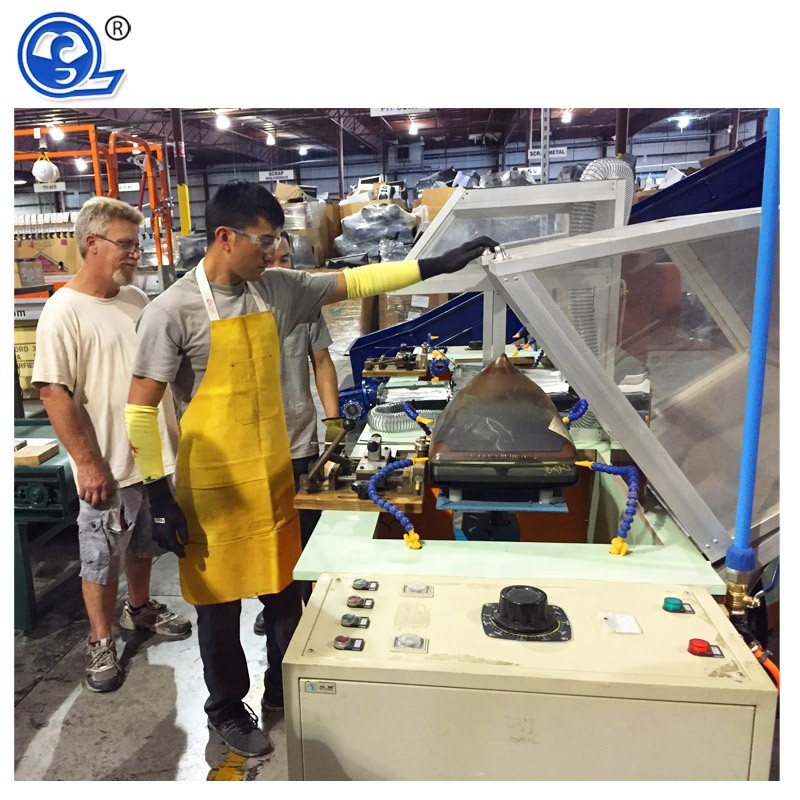

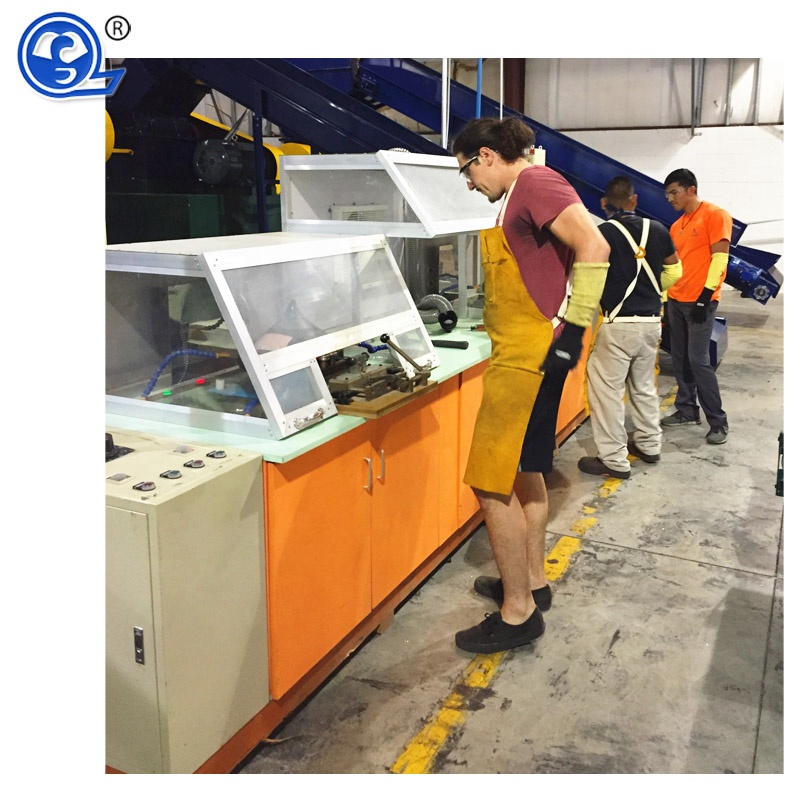

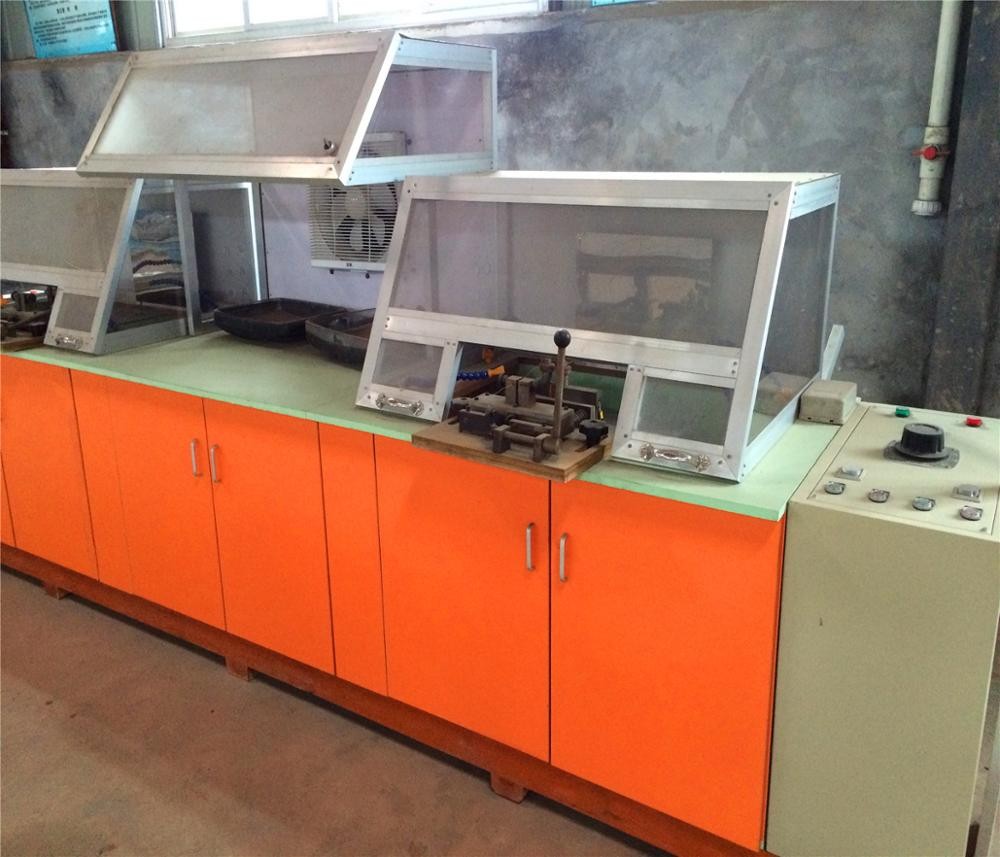

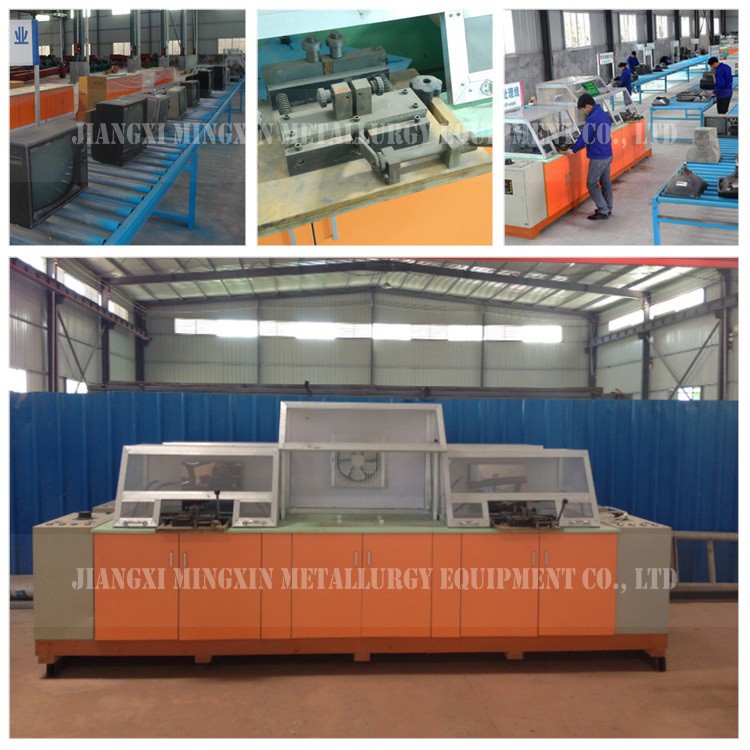

Product Pictures
Click Here Demonstrate the complete CRT cutting process.
