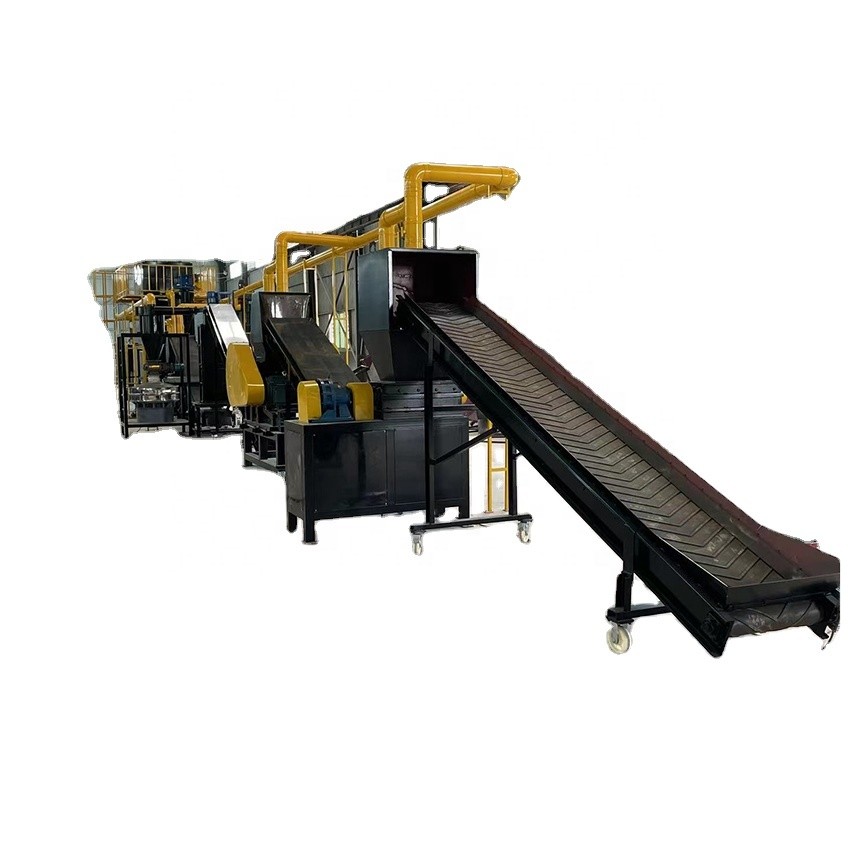

Waste Lithium Battery Recycling Plant

Capacity：300-2500kg/h Raw Soft package battery, Cellphone battery, Materials：Shell battery, Cylindrical battery etc Final Graphite Powder, Black Mass, Foils Products： Aluminum and Copper.

Description

We provide complete solutions and turnkey equipment for lithium battery recycling plant. Our lithium battery recycling line is very efficient and effective, it can disassemble and separate various lithium batteries to obtain copper, aluminum and black mass, foils with high purity.

Specifications

CAPACITY & MODEL
Type	Capacity
MX-300	300 KG/H
MX-500	500 KG/H
MX-1000	1000 KG/H
MX-1500	1500 KG/H
MX-2000	2000 KG/H
WORKING PERFORMANCE
Raw Material	Waste Lithium Batteries
Final Product	Mainly Copper, Aluminum, Lithium Cobalt Oxide, Graphite Powder
TECHNICAL STANDARDS
Nickel-Cobalt Content in Aluminum Particles	≤0.5%
Nickel-Cobalt Content in Copper Particles	≤0.5%
Black Mass of Recovery Rate	≥97%
Aluminum in Black Mass	≤1.5%
Copper in Black Mass	≤1.5%
Copper in Aluminum Granule	≤1%
Aluminum in Copper Granule	≤1%
Exhaust Gas	According to the "Battery Industry Pollutant Emission Standards" (GB30484-2013) Table V
Dust Concentration in Workshop	≤3mg/m3，Measured according to GBZ/T192.1-2007 "Determination of total dust concentration in the workplace

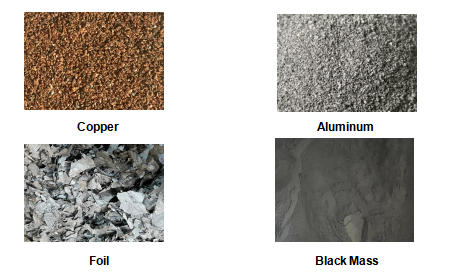

Final Material

TECHNOLOGICAL PROCESS

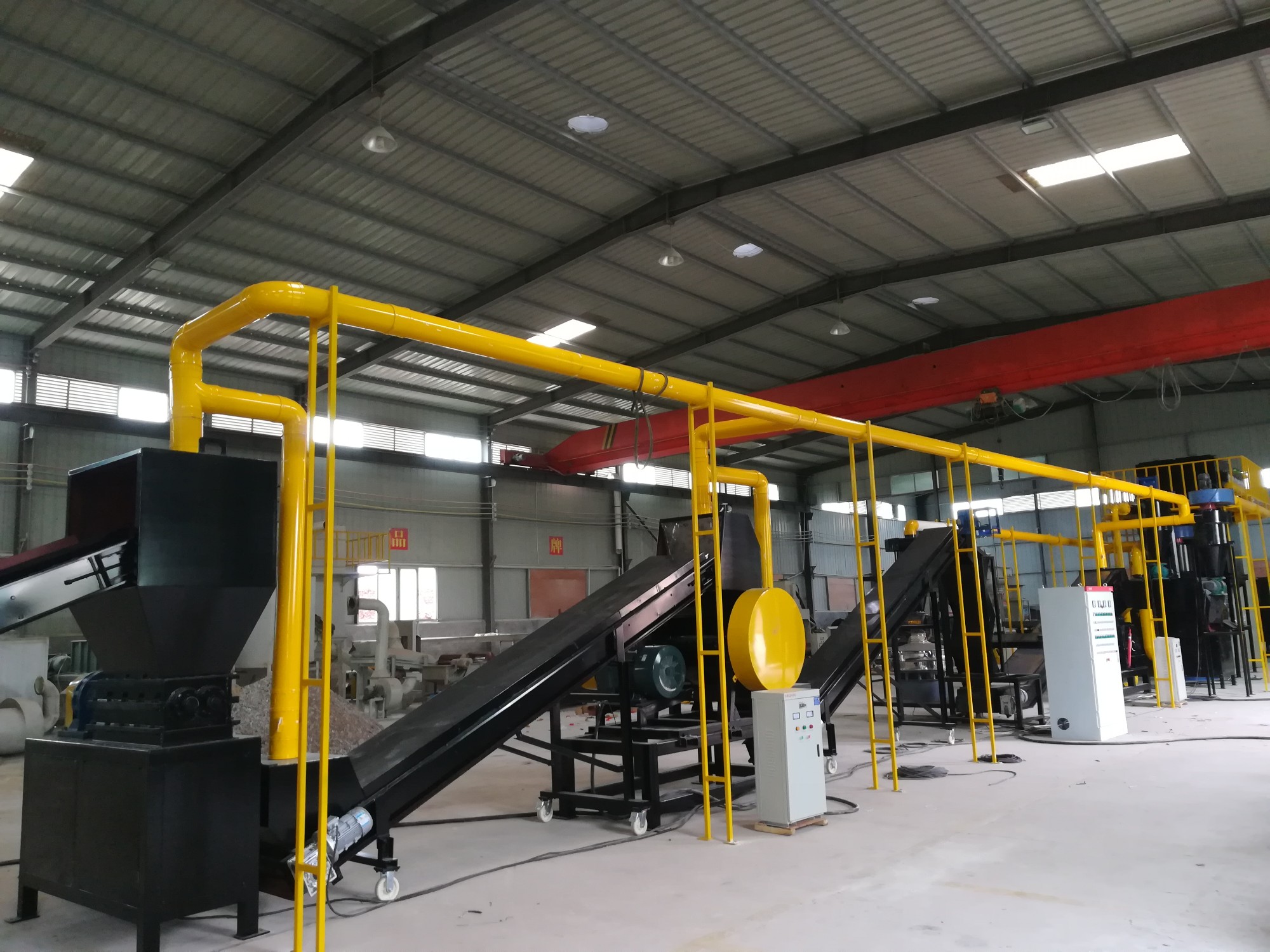

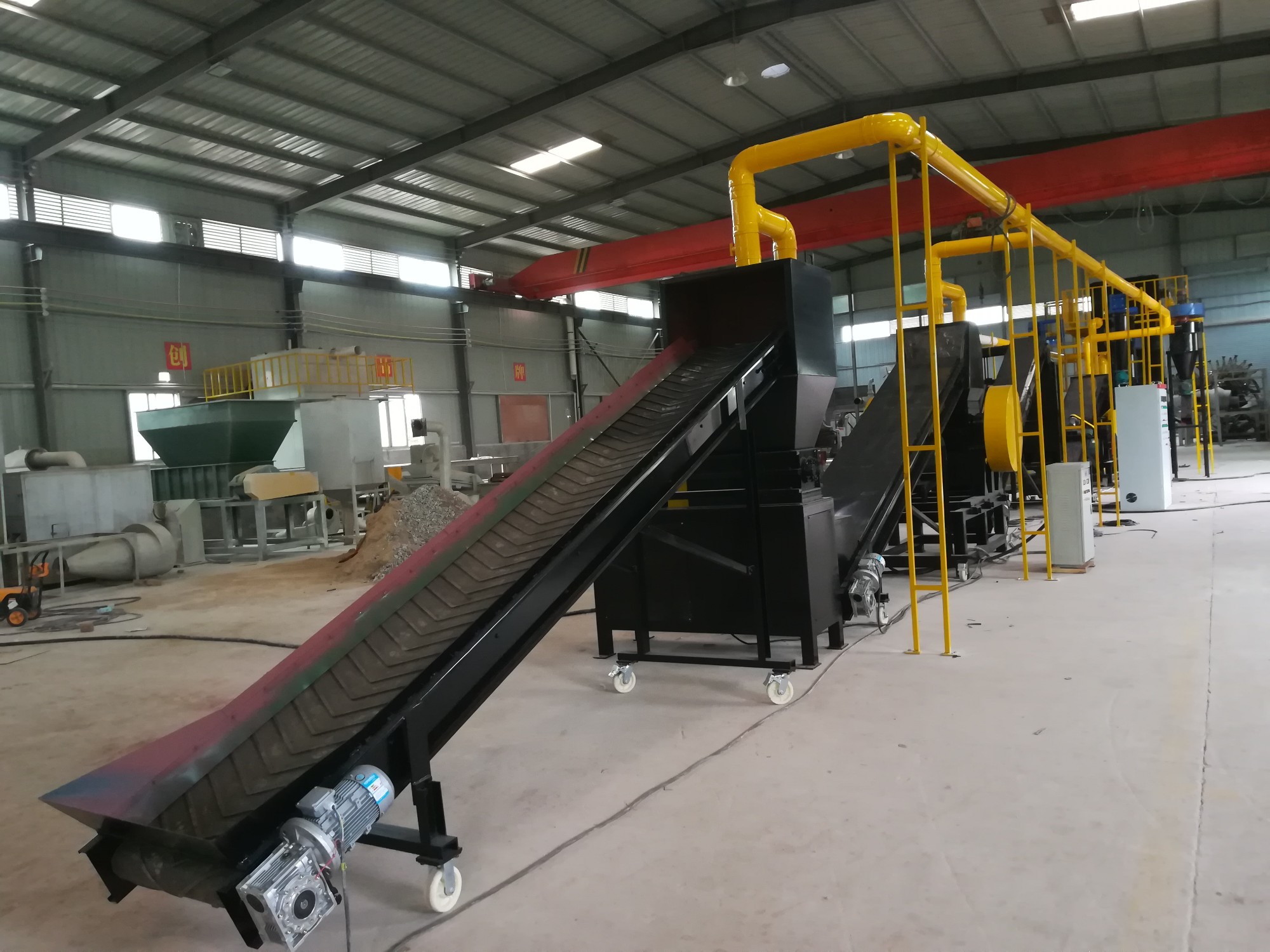

The lithium battery recycling plant consists of multiple machines working together, the following is a description of some of the core equipment:

Shredder: Shredded lithium batteries into smaller pieces.

Hammer crusher: For the secondary crushing of shredded materials.

Grinder: For the grinding of the crushed materials.

Separation Machine: Separate the materials after being ground.

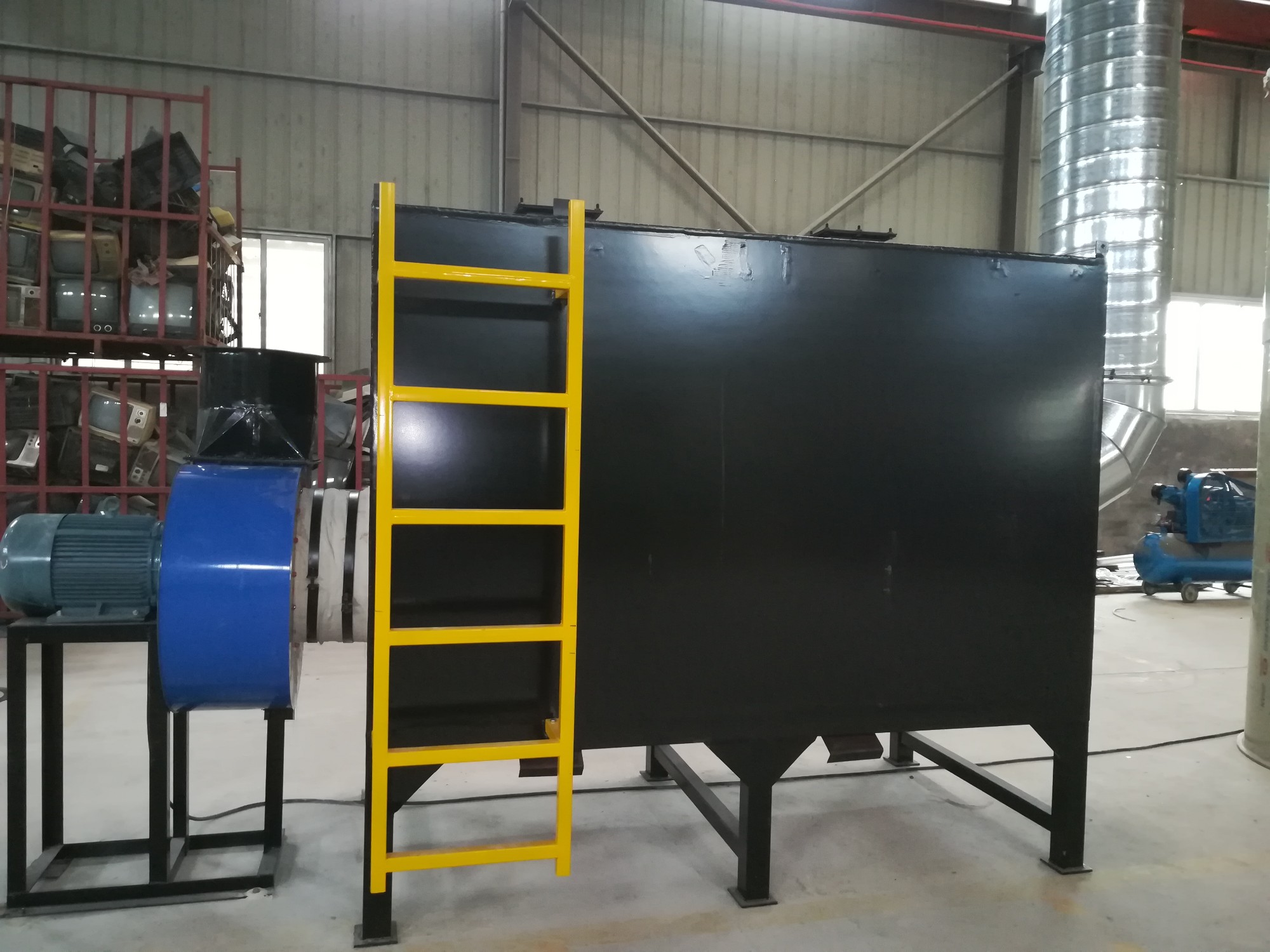

Collector: Collect and release the dust .

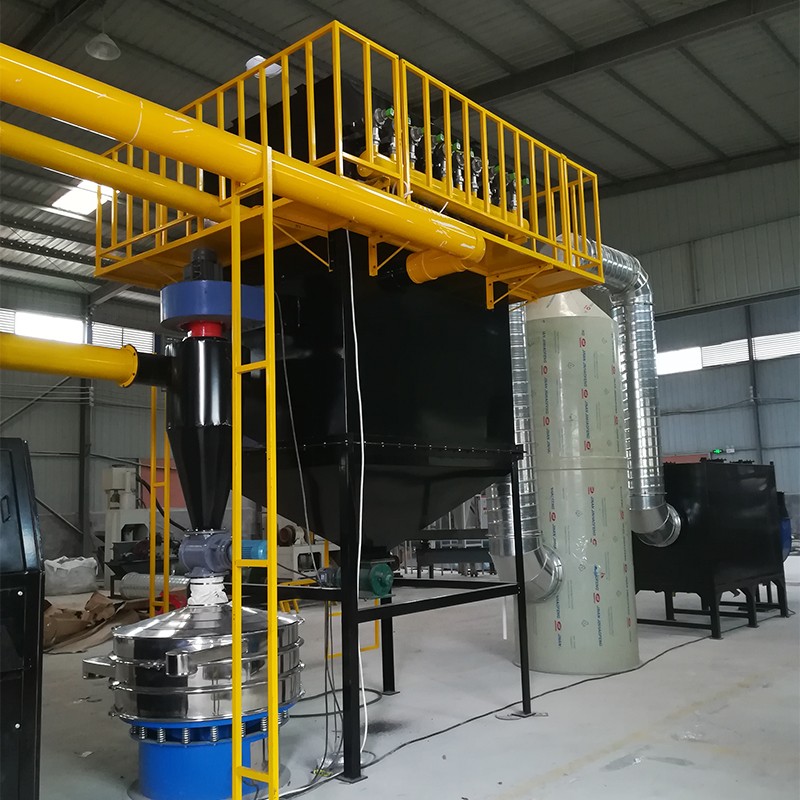

Pulse Purifier (Air Cleaner): Clean all the dust produced during the operation of the whole system.

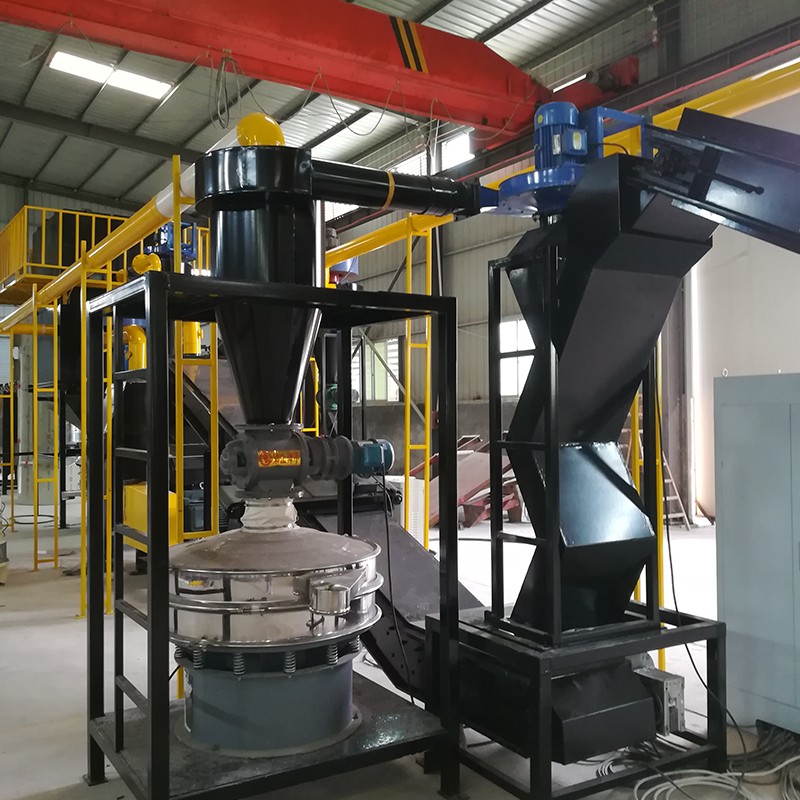

Classifying Screen: Screen the materials sorted by the separation machine, and screen out of large metal materials.

Magnetic Machine: Separate nickel from the metals.

Gravity Separator: Separate those finer materials got from the screening machine and separate the metal completely.

High-pressure blower: Keep the whole system in a negative state so as to collect the materials and purity the air.
