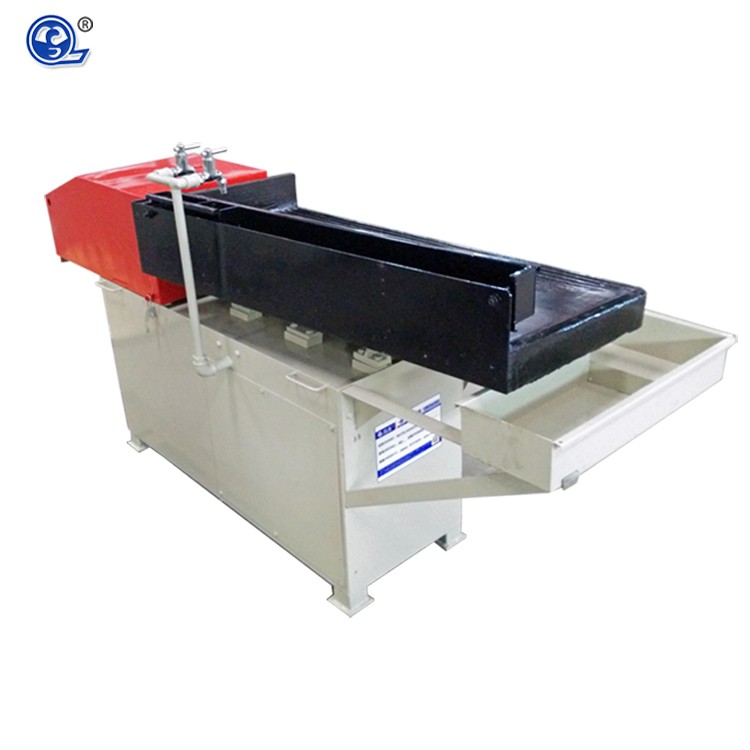

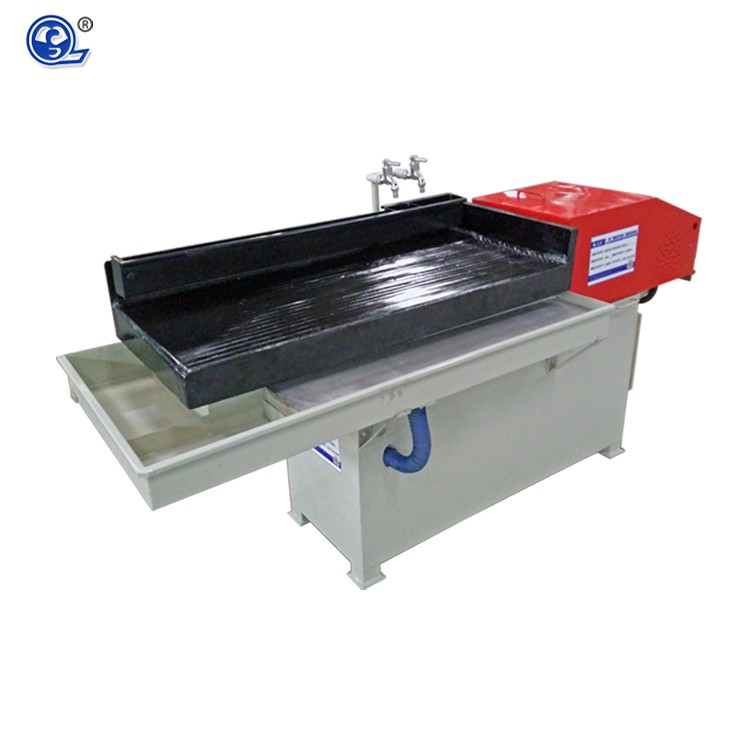

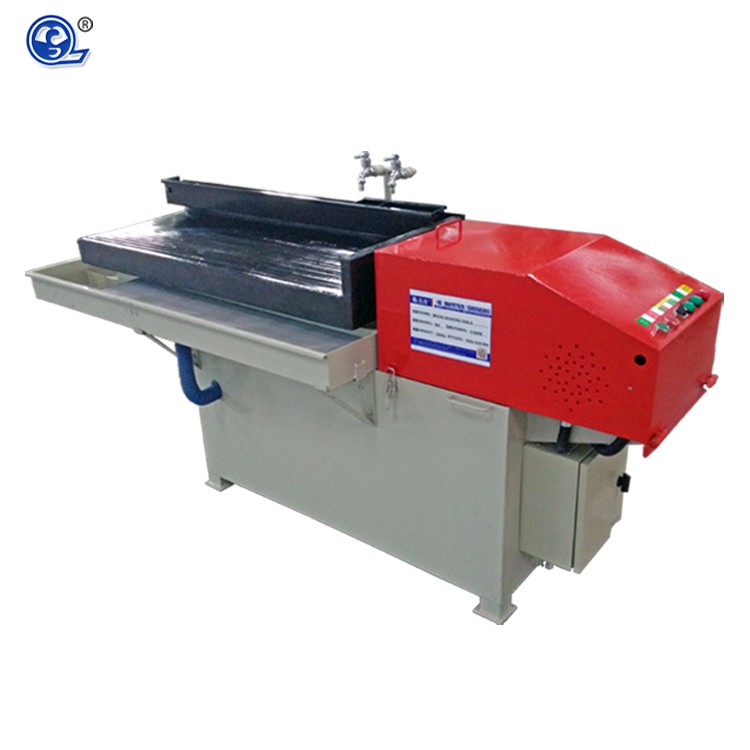

Shaker Table

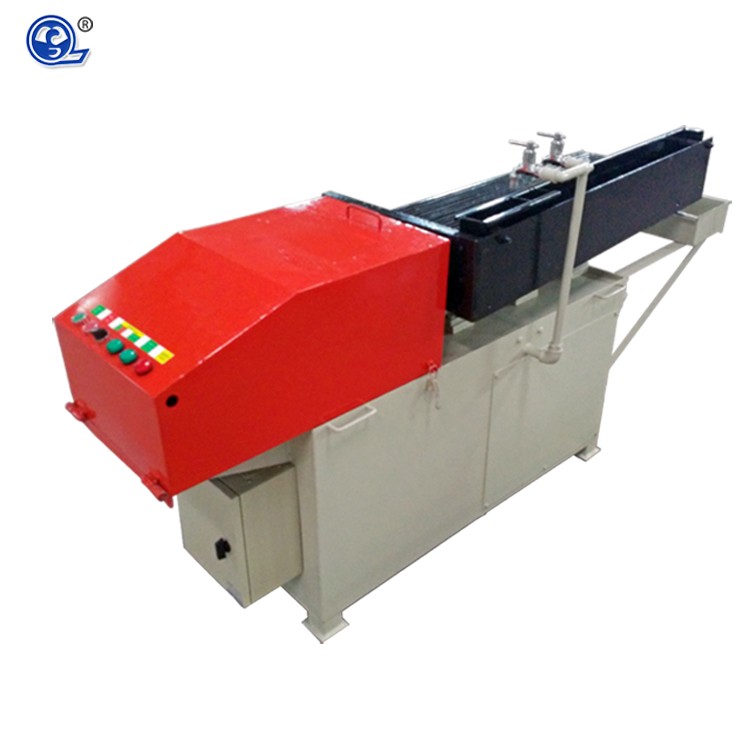

Lab Mini Shaker Table

The table design minimizes turbulence in the slurry as it flows across the table. Low turbulence means a higher recovery of even the finest gold. We know of no gravity recovery system that beats our proven ability to capture 95% of the gold to 325 mesh (50 microns) or less.

Proven applications:

● Hard rock mining
● PCB and e-waste processing
● Scrap metals, copper wire chops
● Auto shred with contaminated metals
● Bottom ash containing precious and base metals

Description

MX1100×500 Shaking table is provided to the laboratory to carry out the mineral separation feasibility study, experiment and for small ore dressing plant,is one of commonly used equipment for gravity dressing.Suitable for separation of fine grain and small grain rare metal, ferrous metal, nonferrous metal, precious metal and coal.it can work independently, also can match with jig, screw separator, centrifugal separator and other processing equipment.

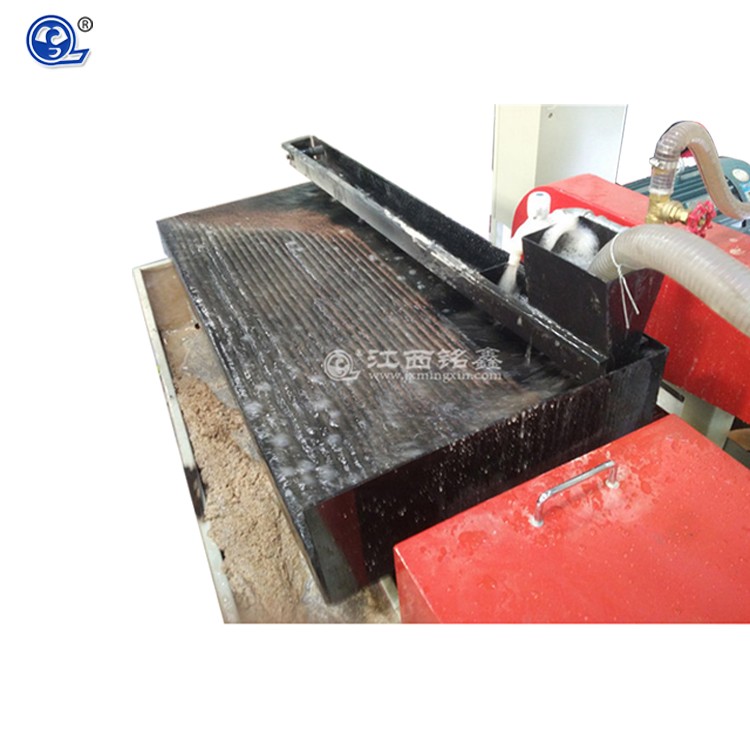

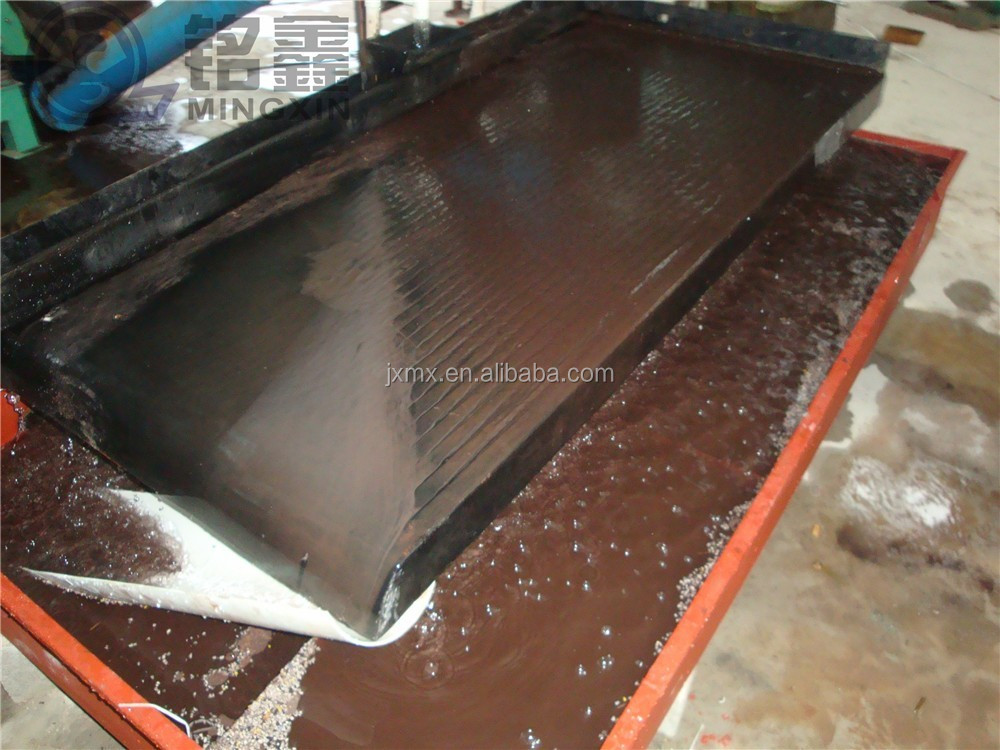

Using the plateau design, only the densest material climbs the grooves in the ramp, is cleaned, and reports to the high grade discharge. Less dense, higher volume material (as in sulfides in gold ore) forms a band at the base of the ramp, reporting to the middlings tray. The lightest material stays behind and reports to the tailings tray.

Other design features of the table were added to minimize turbulence, hence higher fine gold recovery to <325 mesh. Sloped grooves are machined into the rubber top, replacing high-turbulence riffles. There is a smooth back and forth motion to move the material across the table without bumps or jerks. Adjustable water flow helps control the separation of various density components. The table is easy to operate and very forgiving for the new user.

Specification

● Model:MX1100×500

● length of stroke：9---17（mm）

● times of stroke：280~460 time/minutes

● The adjustment range of deck surface tilt Angle：0～10°

● Capacity：60~100 kg/h

● Water consumption：0.3~10 L/minutes

● Deck size：(Length* Width of feedend* Width of ore discharge)1100X500X430mm

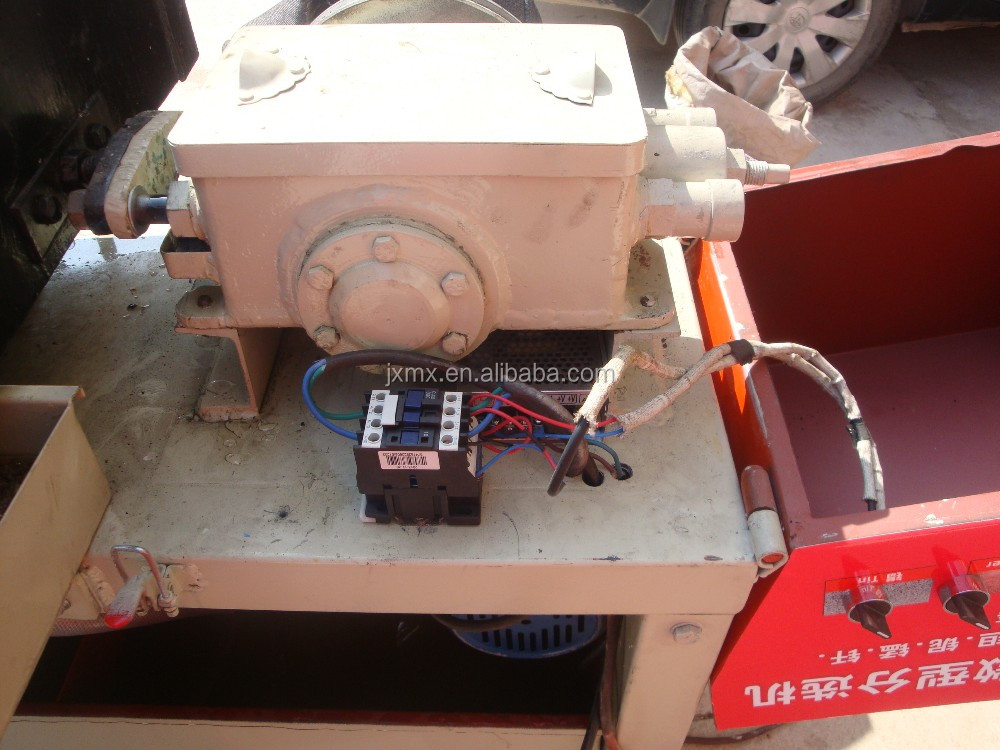

● Motor：Model：Y801-4 0.55KW

● Rotate Speed：1390 r/Minutes

● V belt：A----1245

● Weight：230KG
