Waste TV monitors CRT Dismantling Project established in 2018, it is located in Orlando, Florida, USA. The customer recycles a lot of waste TV sets. The scrap metal and plastic inside need to be crushed and separated, the glass and phosphor powder of the TV monitors|CRT need to be cut, so we recommend our double-station nickel-chrome wire cutter to them.
First of all, waste TV sets need to be disassembled manually. The plastic shell of the TV set, the internal cables and circuit boards are manually separated, and the plastic shell is concentrated and crushed into particles of about 20cm by our plastic shredder for easy packaging. Sell and ship again. Cables can be concentrated to recycle the copper and plastic inside (use our cable recycling equipment to separate plastic and copper particles).

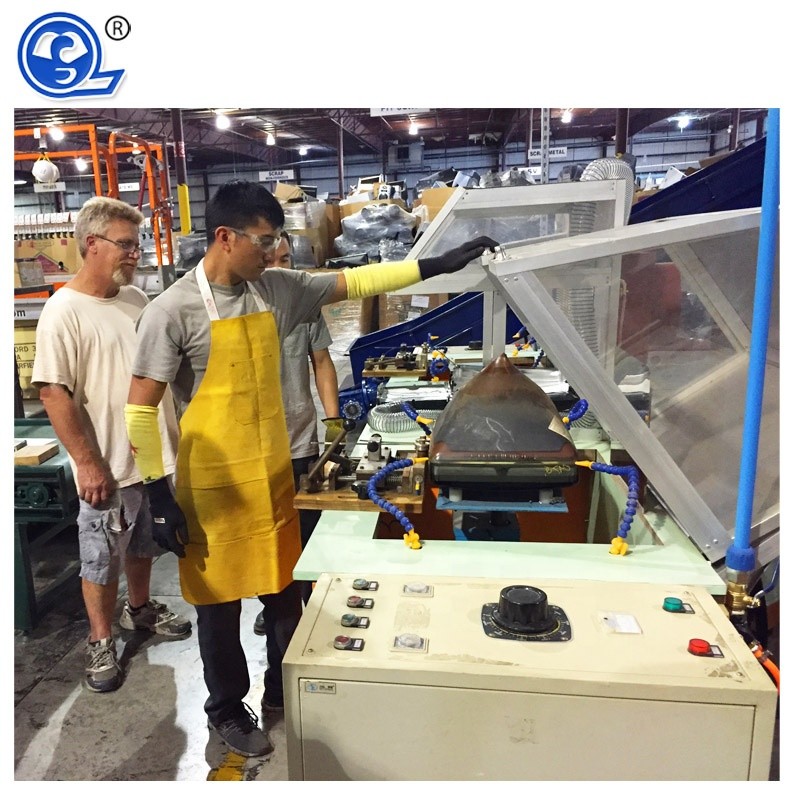

The second step is to use our nickel-chromium wire thermal cutting machine to cut and separate the TV monitors CRT glass and bevel glass from the detached display. At the same time, add a vacuum device to recycle the internal phosphor, so as not to cause air pollution.
The final step is to break the separated glass for resale and transportation.
The parameters of the double-station nickel-chromium wire display cutting machine are as follows:
1. Dimension: 4080x800x1530
2. Treatment size: 10”-40”(Changes the length of heater band can cut a bigger size of TV)
weight: 7-50kg;
dimension: 346x365x365mm, max size: 587x660x868mm
3. Capacity: 120 sets/hour
4. Total power: less than 13Kw
5. Air pump:w-0.8/12.5-7.5kw-180L
6. FLUORESCENT POWDER: 60L-1.8KW->17KPA
7. Weight:700kg
Waste TV monitors CRT Dismantling Project`s processing capacity is as follows:
CRT cutting 120 sets/hour
Plastic recycling 1.5 tons/hour
Copper recovery 300KG/hour
Glass recycling 1 ton/hour
