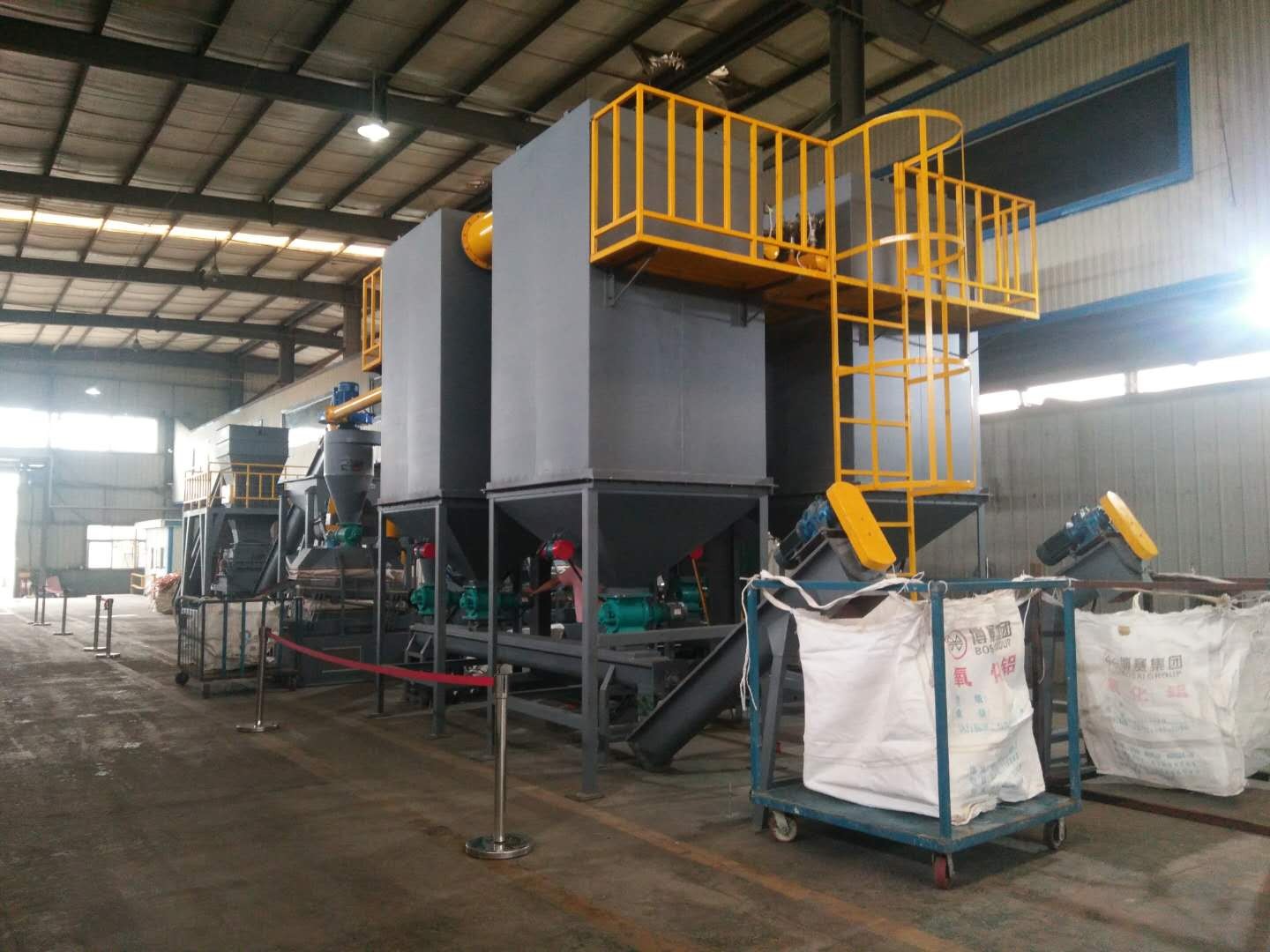

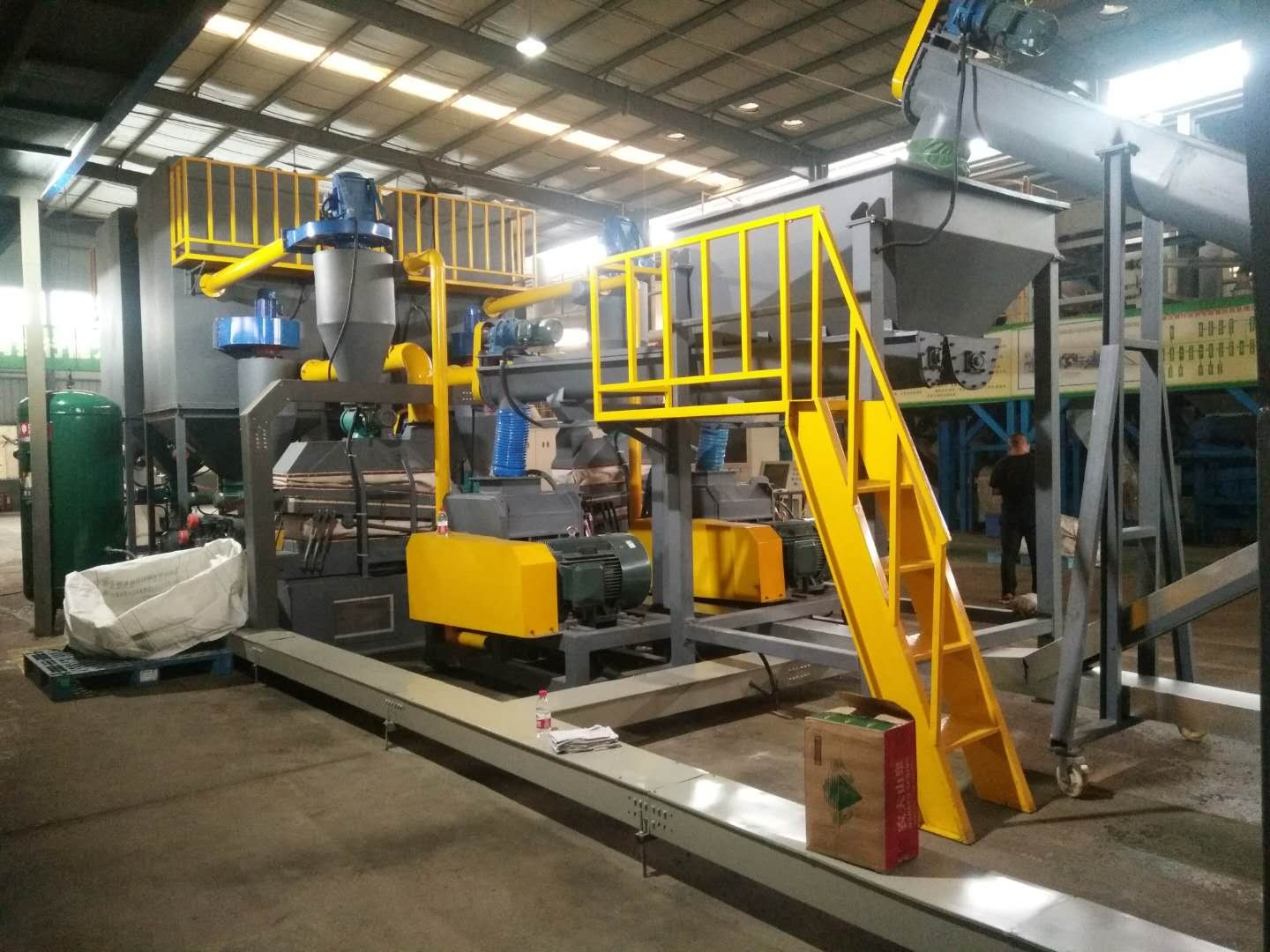

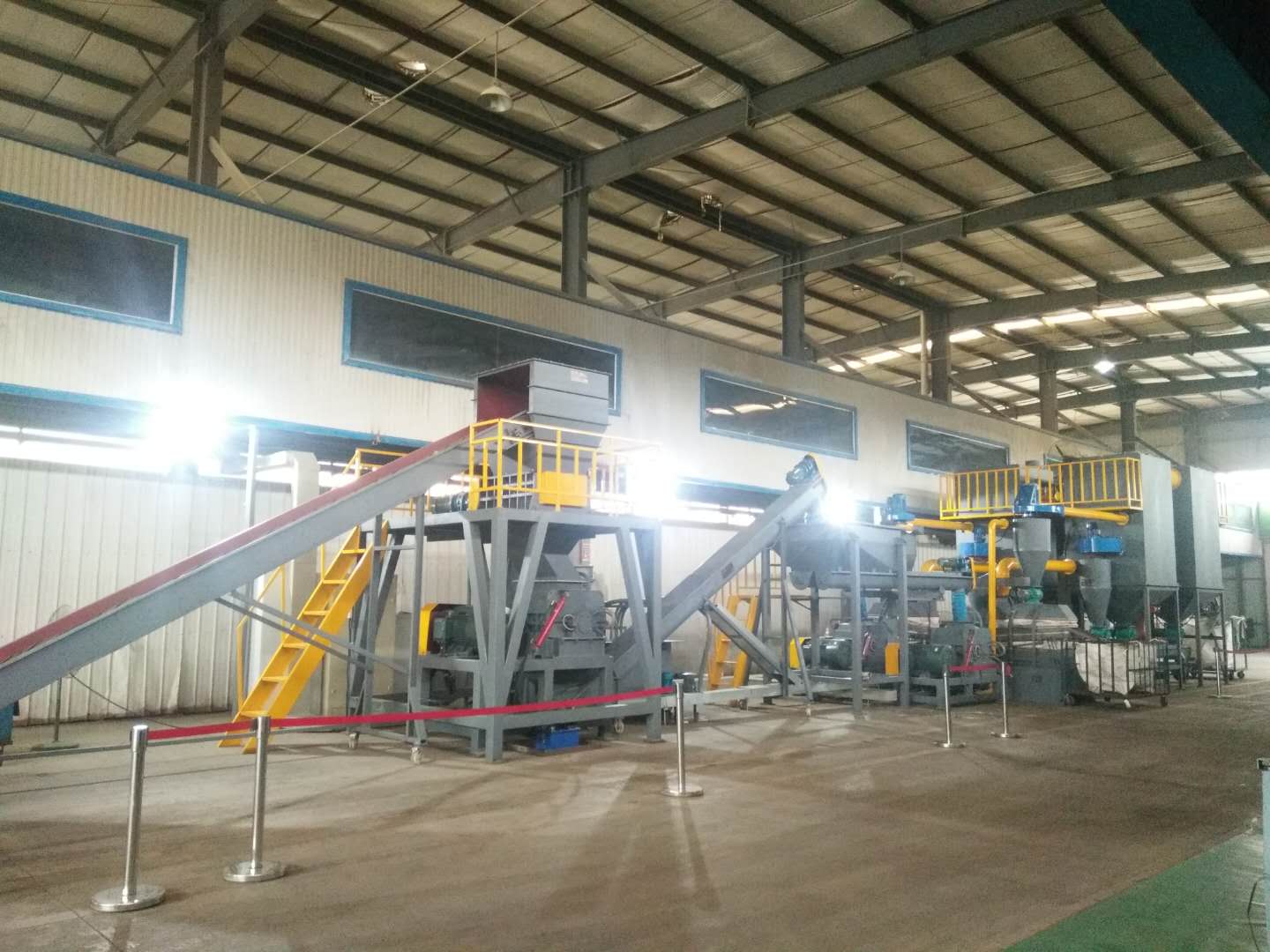

Lithium battery recycling plant in Indonesia
This Lithium battery recycling plant project was built in Jakarta, the capital of Indonesia. The customer requires a processing capacity of 0.5 tons per hour, no secondary air pollution, and finally requires the separation of black powder and metal powder.It took 45 days to make the equipment, 2 weeks to transport it from China to the Jakarta factory, and 2 weeks to install and debug it.
Technical parameters of Lithium battery recycling plant in Indonesia：
1.Capacity: 0.5 MT/H
2.Overall size: 45m*5m*5m
3.Number of operators：3
4.Total power:199.86KW
5.Voltage:3 phase AC 380V/50Hz,200KVA（can be customized）。
6.The max feeding size of the battery(mm):800 X 800
7.Iron Recovery Rate:≥ 99%
8.Copper, Aluminum Recovery Rate:≥ 96%
9.Black Mass Recovery Rate:≥ 99%
10.Noise,dust leakage and exhaust emissions comply with relevant national standards and requirements
11.Site requirements：Plant height is more tha 50 meters;Gate is wider than 5 m is higher than 5 meters;Bearing more than 10 tons.
12.Color of the equipment:Grey and yellow
Process description of Lithium battery recycling plant in Indonesia
Step 1. The battery conveyed by belt conveyor for Preliminary crushing,then conveyed to the second crusher for get smaller particles.
Step 2. the particles after the second crusher conveyed to the third crusher for powder ,between the second and the third crusher there is a magnetic separator for removal iron particles.
Step 3. Material powder state by the vacuum system into the cyclone air filter and air flow through the blower down to the air separation machine ,by the air separation machine to sorting the different densities of material stratification, and finally get the metal separation.And all non-metallic sucked into pulse dust collector by blower.
Step 4. The tail gas will continue to be fed by the negative pressure system to the tail gas treatment equipment for air purification, until it reaches the national emission standards and then high-altitude emissions.
