Waste Utilizing Technology Solar Panel Recycling Solutions

You might have heard: the popularity of solar panels is skyrocketing – whilst the cost of panels has plummeted over the past decade. With people on every continent going bonkers for the power-giving properties of the sun, this rocket doesn’t look like slowing down any time soon. The world’s solar power capacity is expected to balloon in size over the next 30 years, especially with the advent of new solar technologies.According to the International Renewable Energy Agency (IRENA), it will grow from 222 gigawatts (GW) in 2015 to a whopping 4,500 by 2050. That’ll be 16% of global electricity powered by the sun. However, this worldwide splurge on solar panels has created a problem for us further on down the line: ‘end-of-life management’. In the mid 2030s, a lot of solar panels are expected to conk out for good, and it may hit us like a tonne of silicon bricks.

MINGXIN Solar Panel Recycling Solutions

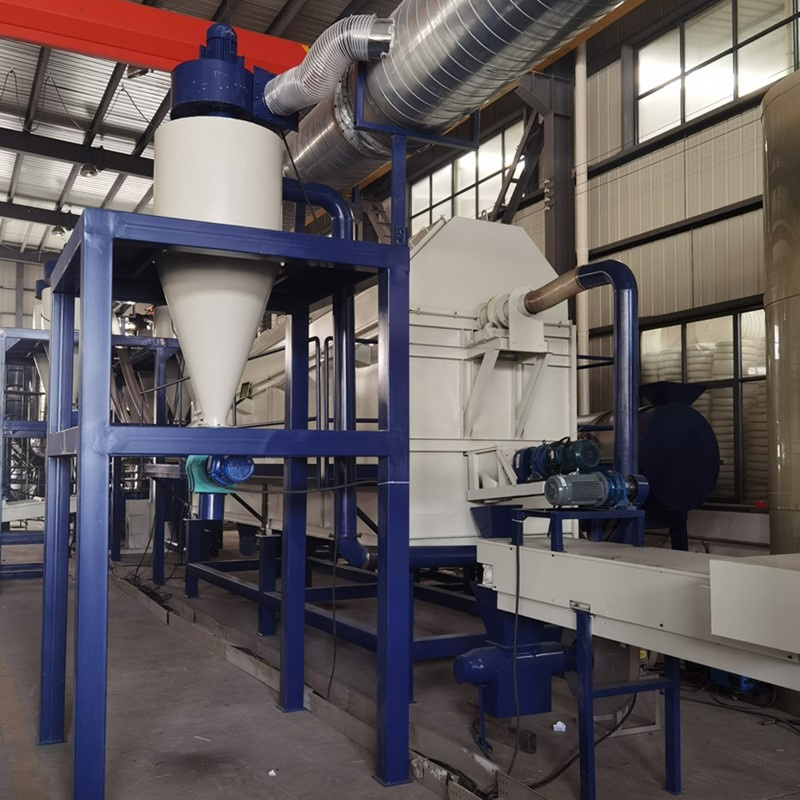

This recycling production line adopts dry process to effectively separate and recycle waste solar panels. The main equipment includes Crushing system, sorting system, dust removal system and so on.

① The frame of the solar panel is removed by the frame removal machine.

② Remove glass on the photovoltaic panel by a glass remover machine.

③ The solar photovoltaic panels with the aluminium frame and glass removed enter the twin shaft shredder. The twin-shaft shredder tears the PV panels into strips. Next, the material enters the crusher. The shredder crushes the material into small pieces of 3-5 cm.

④ Through negative pressure feeding, these small pieces will enter the Fine grinder. The fine grinder we configure is with return material, if the particle size is unqualified, it will be returned to the fine grinder.Qualified sizes enter the air separator.The metal powder is screened out from one side of the air separator. The other side is plastic and a small amount of metal.

⑤ These plastics and a small amount of metal enter the electrostatic separator.The pure plastic and metal are again sorted out.

We are pleased to provide you with the most important key information and guidelines for installing the proposed Mingxin System, as well as instructions on what services should be provided by you, the customer.
