Product


  • Double Shaft Shredder
  • Double Shaft Shredder
  • Double Shaft Shredder
Double Shaft ShredderDouble Shaft ShredderDouble Shaft Shredder

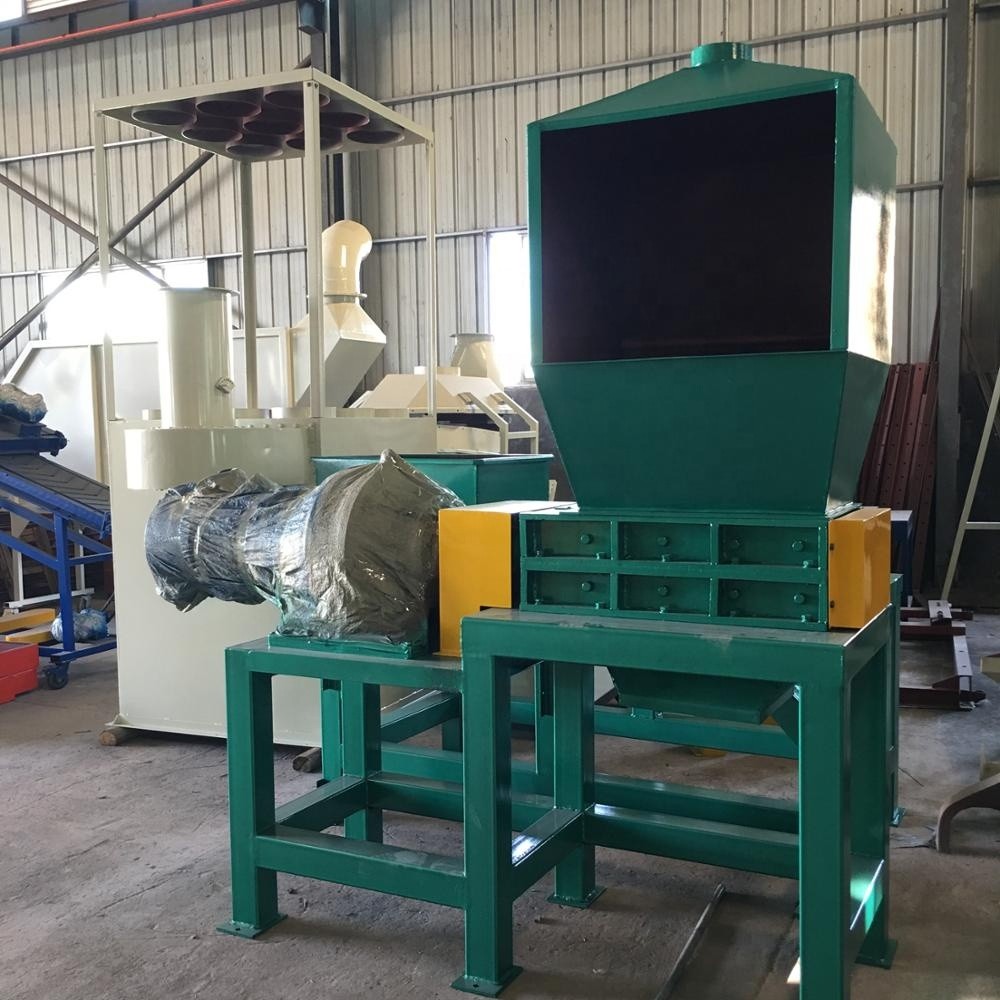

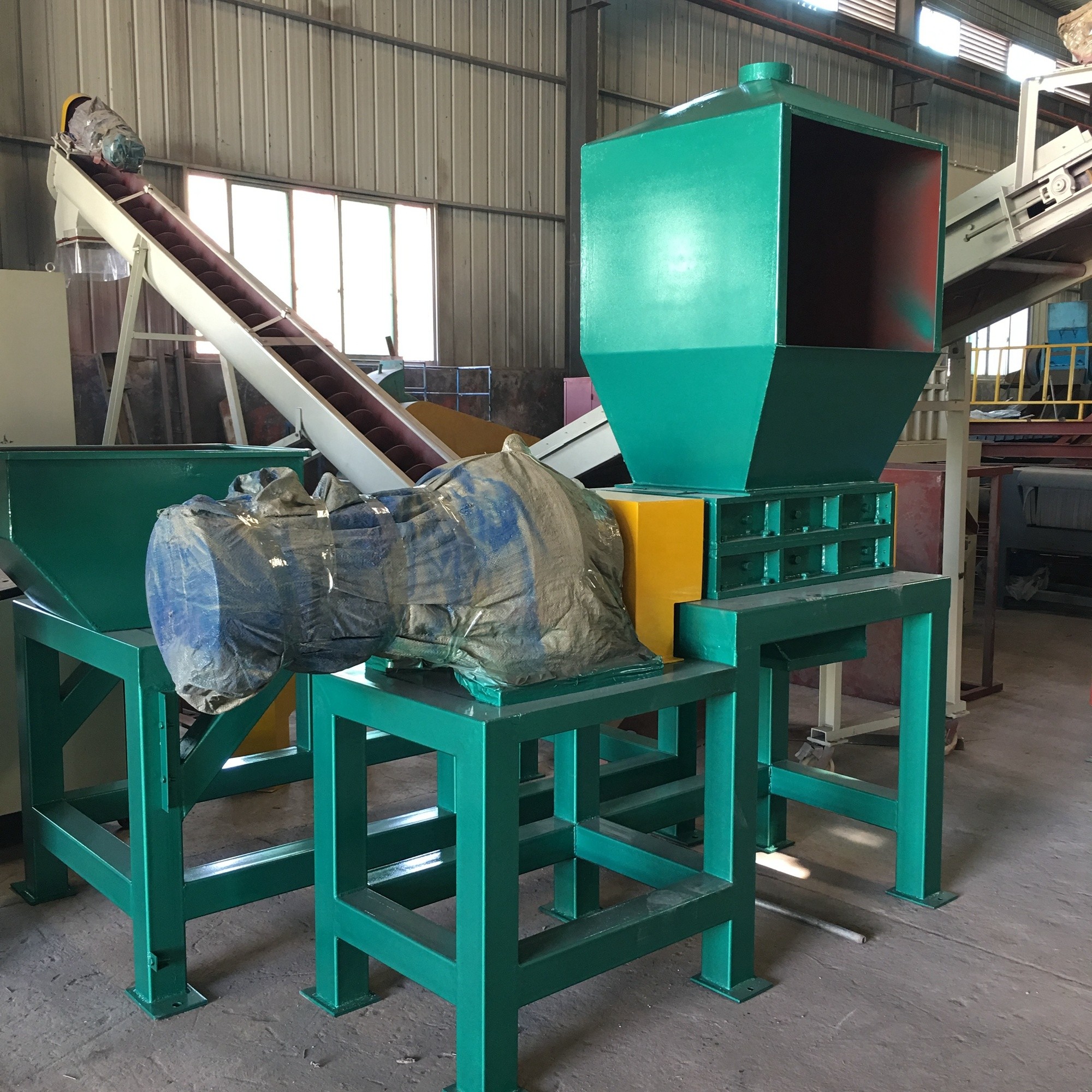

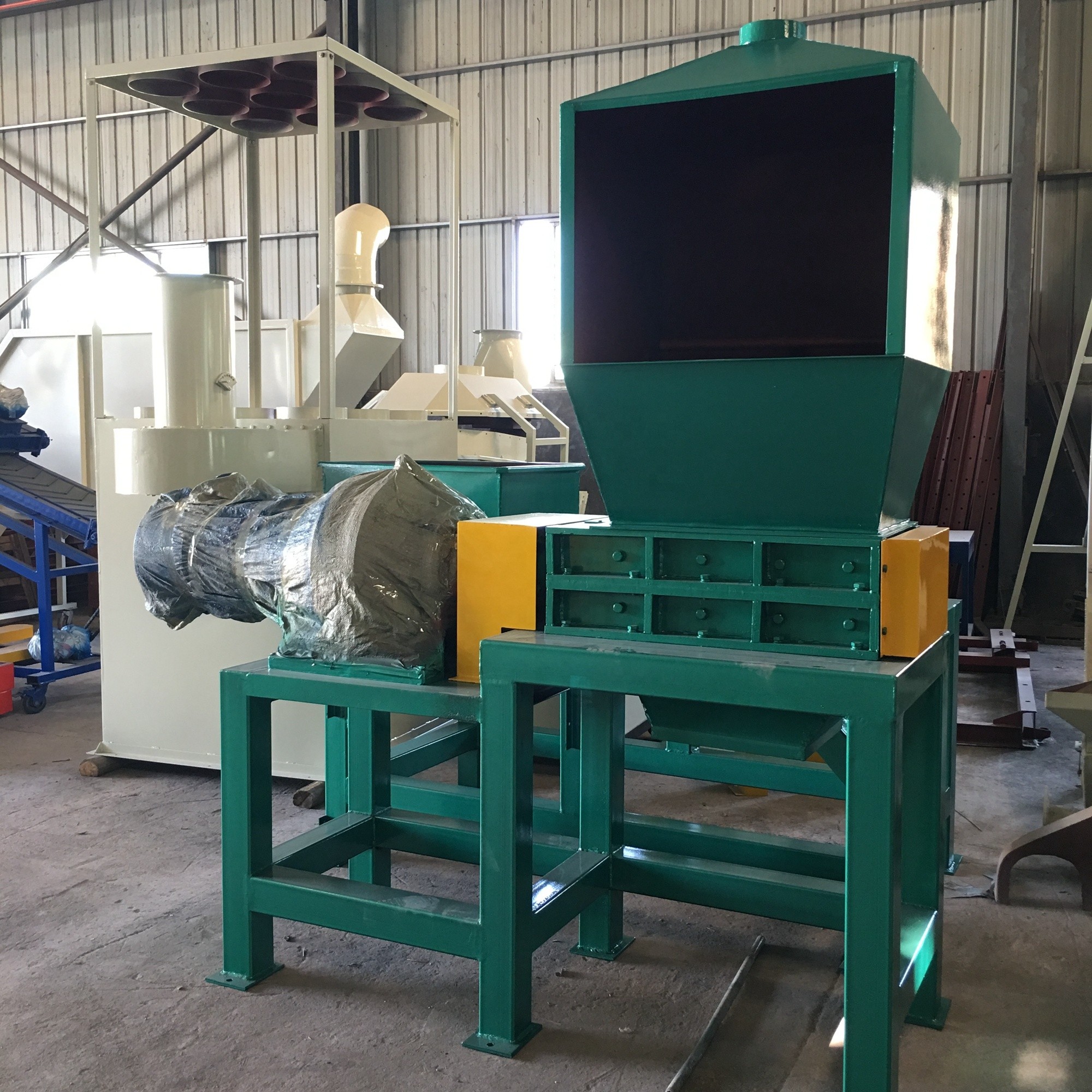

Double Shaft Shredder

Double Shaft Shredder Twin shaft.
High output.
Process smaller than 1000*1000mm
Used in small-to-medium material waste recycling.

Product Description

This sturdy twin shaft shredder (double shaft shredder) is designed for longevity and versatility; along with hazardous waste, it economically processes sheet metal, electronic scrap, sheet metal barrels, all sorts of containers for liquids.


Double Shaft Shredder Application

RDF(Refuse Derived Fuel): MSW, industry waste, wood, paper, tires, plastics, carpet, textile
Metal Materials: Aluminum, ferrous, non-ferrous, steel drums, waste automotive
Electronics: WEEE, electronic equipment, waste household appliances
Aluminum: Cans, aluminum products, building materials, sheet
Plastic: Plastic drums, plastic lumps, films


Double Shaft Shredder Intro

MX Series twin shaft shredder can handle a wide range of solid waste. Compared to single shaft shredder, this series has lower speed, higher torque, and higher efficiency. It excels in size reducing industrial waste, MSW, electronic waste, waste household appliances and other mixed wastes. Its structure is relatively compact and maintenance-friendly with a maintenance door that provides full access to the crushing chamber and bearing housing.
Because double shaft shredder is screenless, it is often used as primary shredding, and its shredded particle size depends on the blade thickness.

Technical Parameter

Model Capacity (Kg/H) Power(KW) Bin Size(mm) Output Size(mm) Dimension(mm)

MX-600

200-300 11 370*335 5-20 1300*600*1250

MX-800

300-500 15 585*300 5-20 1500*700*1300

MX-830

500-800 22 600*385 5-40 2300*700*1250

MX-1100

1000-1500 2*22 1030*610 5-40 3060*960*3180

Twin Shaft Shredder Features

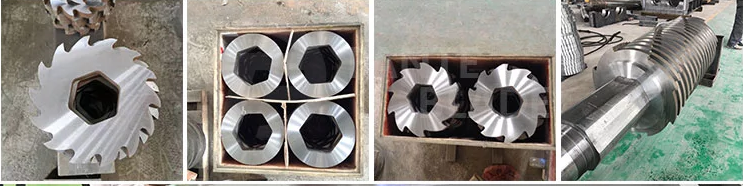

Knife adopts high alloy steel 42CrMo with high strength and toughness.
Blade of D-rotor and OM rotor adopts D2 steel, and knife adopts 42CrMo steel.
The main electrical components of dual shaft shredder are trusted brands such as Siemens and Schneider.
Auto-reverse system re-orients rotor direction when motor overload & material jam.
Pusher Ram is optional for hollow and gigantic materials.

Advantages

Not only a single machine, Mingxin provides you with a complete solution, including an integrated shredding.  Various customizations for motor drives, motor power, blade types and blade configuration, we will guide you to select the best-fit solution for your application.

  • Motor drives: mechanical, hydraulic and electromechanical (VFD)
  • Motor power: from 30 to 200 kW
  • Blades: easy replacement blades or standard disk blades. Blades’s width and materials like Hardox are up to your call.
